| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Current | |
| Data Rate | |
| Failure Rate | |
| Frequency | |
| Memory Size | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Utilized IC | |
| Voltage |

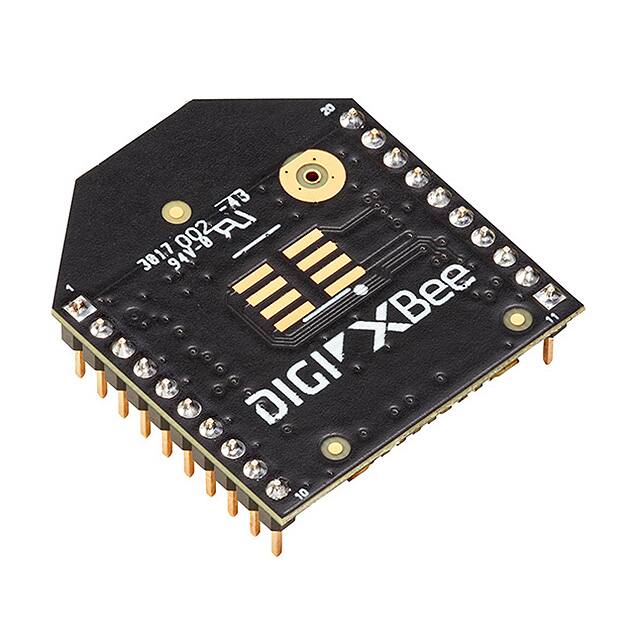

The Digi XB3-24Z8PT-J is an RF transceiver module designed for wireless communication applications. It operates in the 2.4GHz frequency band and supports the Zigbee® protocol, making it suitable for mesh networking and IoT devices.
Key electrical specifications include a data rate of 250kbps, a sensitivity of -103dBm, and an output power of 8dBm. The module requires a supply voltage ranging from 2.1V to 3.6V and consumes 15mA in receiving mode and 40mA in transmitting mode. It utilizes the EFR32MG IC and offers serial interfaces such as I²C, SPI, and UART for integration into various systems.
This module features an integrated trace antenna and is designed for through-hole mounting, facilitating easy integration onto printed circuit boards. The operating temperature range is -40°C to 85°C, ensuring reliable performance in diverse environmental conditions. The XB3-24Z8PT-J comes with 1MB Flash and 128kB RAM memory.
Compliance information indicates RoHS compliance and REACH unaffected status. The module is packaged in a tray.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.06 | $6.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is from 2.1V to 3.6V.
It uses through hole mounting.
-40°C to 85°C.
RoHS compliant.
