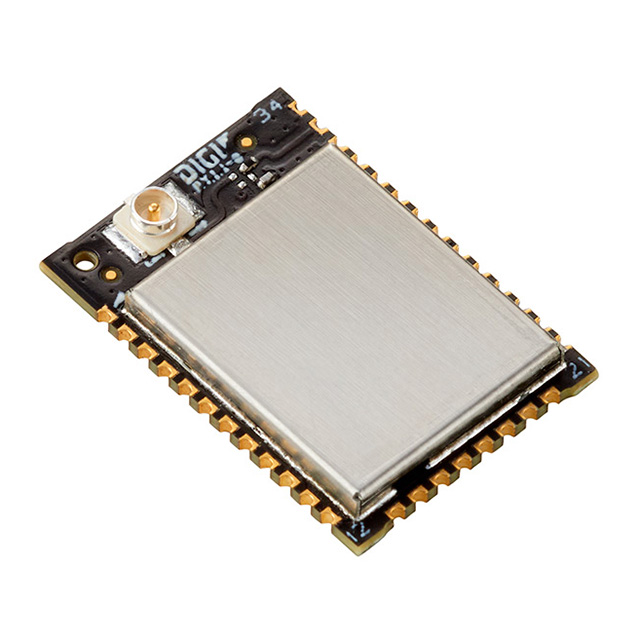

XB3-24AUM The Digi XB3-24AUM is an RF Transceiver Module supporting 802.15.4, Bluetooth v4.0, and Zigbee® protocols. It operates in the 2.4GHz frequency band.
Mfr Part #:

XB3-24AUM

Available from 1 distributors
Mfr Name: Digi
Digi
The Digi XB3-24AUM is an RF Transceiver Module supporting 802.15.4, Bluetooth v4.0, and Zigbee® protocols. It operates in the 2.4GHz frequency band.
✓ Total Stock: 234 pcs
$ Price Range: $6.06

XB3-24AUM Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
234 pcs
On Request
234 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

XB3-24AUM Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Antenna Type
Current
Data Rate
Frequency
Memory Size
Modulation
Mounting Type
Operating Temperature
Output Power
Power
Protocol
RF Family
Range °
Sensitivity
Serial Interfaces
Supply Voltage
Voltage
View Similar Products (0)

XB3-24AUM Description

Short technical summary and product information.

The Digi XB3-24AUM is a versatile RF Transceiver Module designed for wireless communication applications. It supports multiple protocols including 802.15.4, Bluetooth v4.0, and Zigbee®, operating in the 2.4GHz frequency band.



Key electrical specifications include a data rate of 250kbps, a sensitivity of -103dBm, and an output power of 8dBm. The module requires a supply voltage ranging from 2.1V to 3.6V and features serial interfaces such as I2C, SPI, and UART. It is equipped with 1MB Flash and 128kB RAM.



This module is designed for surface mount installation and comes in a 34-SMD Module package. It operates within a temperature range of -40°C to 85°C. The antenna type is specified as 'Antenna Not Included, U.FL'.



The XB3-24AUM is suitable for various wireless networking applications where reliable and efficient data transmission is required.

XB3-24AUM Quick Information

Product Type: RF Transceiver Module
Series: XBee® 3
Canonical Name: XB3-24AUM RF Transceiver Module
Subcategory: RF Transceiver Modules

XB3-24AUM Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

XB3-24AUM Estimated Pricing

Qty Low High
1+ $6.06 $6.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

XB3-24AUM Features

  • Supports 802.15.4, Bluetooth v4.0, Zigbee® protocols.
  • Operates at 2.4GHz frequency band.
  • Features 250kbps data rate and -103dBm sensitivity.
  • Surface mount package for easy integration.
  • Wide operating temperature range of -40°C to 85°C.

XB3-24AUM Applications

  • Ideal for wireless sensor networks.
  • Suitable for mesh networking applications.
  • Used in IoT device communication.
  • Enables short-range wireless links.
  • Supports remote control systems.

XB3-24AUM FAQs

7 frequently asked questions generated from this part’s specifications.
What protocols does the XB3-24AUM module support?

The XB3-24AUM module supports Bluetooth v4.0, Zigbee®, and 802.15.4 protocols.

What is the operating frequency of the XB3-24AUM module?

The XB3-24AUM module operates at a frequency of 2.4GHz.

What is the data rate for the XB3-24AUM module?

The XB3-24AUM module has a data rate of 250kbps.

What is the supply voltage range for the XB3-24AUM module?

The XB3-24AUM module operates with a supply voltage range of 2.1V to 3.6V.

What is the operating temperature range of the XB3-24AUM module?

The XB3-24AUM module can operate in temperatures ranging from -40°C to 85°C.

What type of antenna does the XB3-24AUM module use?

The XB3-24AUM module uses an antenna type specified as Antenna Not Included, U.FL.

What are the serial interfaces available on the XB3-24AUM module?

The XB3-24AUM module features I2C, SPI, and UART serial interfaces.
