XALD164H29H7

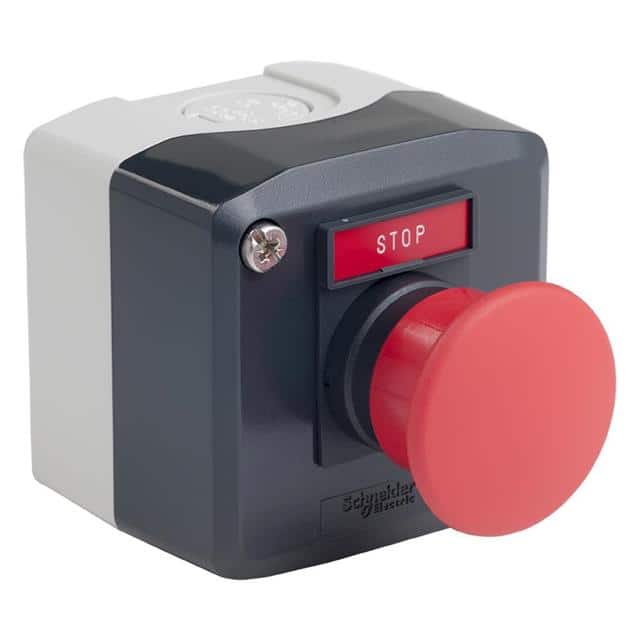

The Schneider Electric XALD164H29H7 is a complete control station from the Harmony XALD range, designed for stop functions. It features a dark grey cover and a light grey base, both made from robust polycarbonate material.

This control station is equipped with a red mushroom head pushbutton with a 40 mm diameter, providing a spring return and a normally closed (NC) contact operation. The contact type is slow-break. The device is designed for use with XB5 Ø 22 mm control and signalling units.

Connectivity is handled via screw clamp terminals, suitable for cable sizes up to 2 x 1.5 mm² with cable end or >= 1 x 0.22 mm² without cable end. The tightening torque specification is between 0.8 and 1.2 N.m. The station offers multiple cable entry options, including one knock-out for 14 mm cable entry and two knock-outs for Pg 13 cable glands and ISO M20 (12 mm).

Key electrical specifications include a rated insulation voltage of 600 V and a rated impulse withstand voltage of 6 kV. The conventional free air thermal current is 10 A. Operational current ratings vary with voltage, such as 6 A at 120 V AC-15 and 3 A at 240 V AC-15. Mechanical durability is rated for 5,000,000 cycles, and electrical durability is 1,000,000 cycles under specific AC-15 conditions.
