| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Saturation | |
| DC Resistance (DCR) | |
| Inductance | |
| Mounting Type | |
| Operating Temperature | |
| Ratings | |
| SVHC Present | |
| Self Resonant Frequency | |
| Shielding | |
| Tolerance | |
| Type |

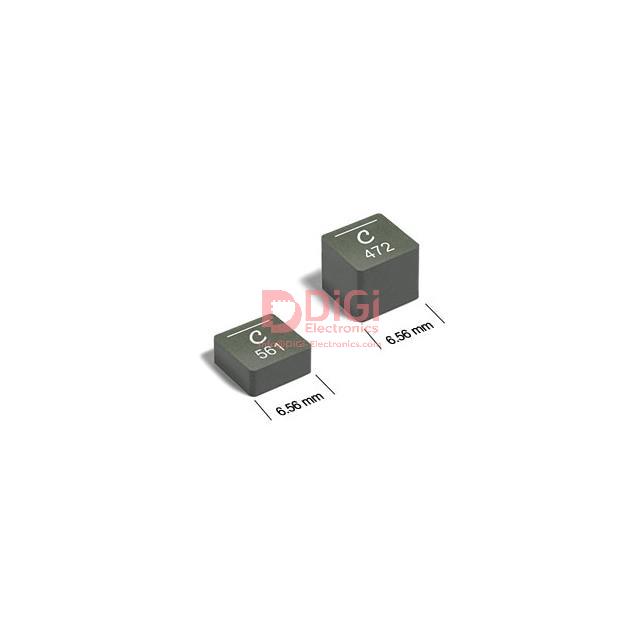

The Coilcraft XAL6060-822MEC is a fixed inductor from the XAL60XX series. It offers an inductance value of 8.2 µH with a tolerance of ±20% and a maximum DC resistance of 26.4 mOhm.
This shielded, molded inductor is designed for surface mounting and has a current rating of 8 A, with a saturation current (Isat) of 8.4A. It operates within a temperature range of -40°C to 125°C and has a self-resonant frequency of 16MHz. The core material is a metal composite, and it meets AEC-Q200 ratings.
This component is suitable for various electronic applications requiring stable inductance and current handling capabilities. Its shielded construction helps minimize electromagnetic interference, making it a reliable choice for power supply circuits and other demanding applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 8.2 µH at 1 MHz.
The continuous current rating is 8 A.
The maximum DC resistance is 26.4 mOhm.
The self-resonant frequency is 16 MHz.
The operating temperature range is -40°C to 125°C.
Yes, it is a shielded inductor.
The core material is metal composite.
