| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
29 pcs
|
29 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Saturation | |
| DC Resistance | |
| Inductance | |
| Lead Style | |
| Operating Temperature | |
| Ratings | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type |

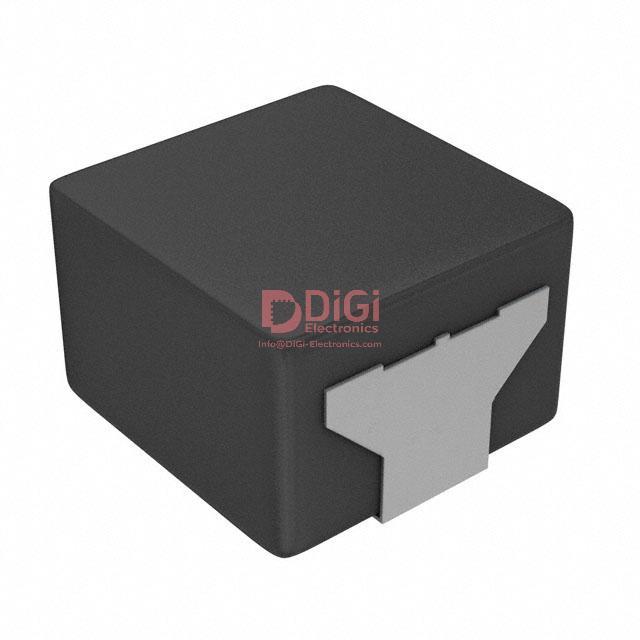

This Coilcraft XAL5050-153MEC is a fixed inductor from the XAL5050 series, designed for reliable performance in various electronic applications. It offers an inductance value of 15 µH with a tolerance of ±20% and can handle a current rating of up to 3A. The inductor has a maximum DC resistance of 109.12 mOhm and a saturation current of 5.1A.
Constructed with a shielded drum core made of metal composite material, this component is suitable for demanding environments, operating within a temperature range of -55°C to 155°C. It is AEC-Q200 qualified, indicating its suitability for automotive and other high-reliability applications. The inductor is supplied in a Tape & Reel package.
Key electrical characteristics include its 15 µH inductance and 3A current rating, making it a robust choice for power supply circuits and filtering applications. The shielded design helps minimize electromagnetic interference, ensuring cleaner signal integrity.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 15 µH.
The maximum current rating is 3 A.
The maximum DC resistance is 109.12 mOhm.
The operating temperature range is -55°C to 155°C.
Yes, it is shielded.
The saturation current is 5.1 A.
Yes, it is AEC-Q200 rated.
