| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11,800 pcs
|
11800 pcs | On Request | 1 | On Request | On Request | 19+ | On Request | On Request | |
|
3,150 pcs
|
3150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
106 pcs
|
106 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Saturation | |
| DC Resistance (DCR) | |
| Inductance | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Ratings | |
| Self Resonant Frequency | |
| Shielding | |
| Tolerance | |
| Type |

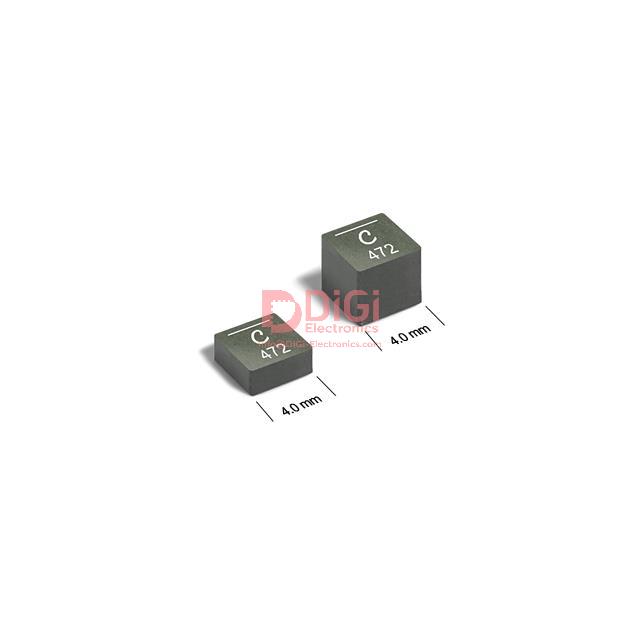

The Coilcraft XAL4030-682MEC is a fixed inductor from the XAL4000 series, designed for demanding applications. This shielded, molded inductor offers a nominal inductance of 6.8 µH with a tolerance of ±20% at 1 MHz.
It is rated for a continuous current of 3.9 A and has a saturation current of 3.6 A. The DC resistance (DCR) is a maximum of 74.1 mOhm, contributing to efficient operation. The component has a self-resonant frequency of 29 MHz and operates within a temperature range of -40°C to 125°C. It meets AEC-Q200 standards.
The inductor is housed in a compact 1616 (4040 Metric) package and is designed for surface mount applications. It is supplied on tape and reel, making it suitable for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.04 | $0.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal inductance is 6.8 µH at 1 MHz.
The continuous current rating is 3.9 A and the saturation current is 3.6 A.
The maximum DC resistance is 74.1 mOhm.
The self-resonant frequency is 29 MHz.
The operating temperature range is -40°C to 125°C.
Yes, it is rated AEC-Q200.
The package is 1616 (4040 Metric).
