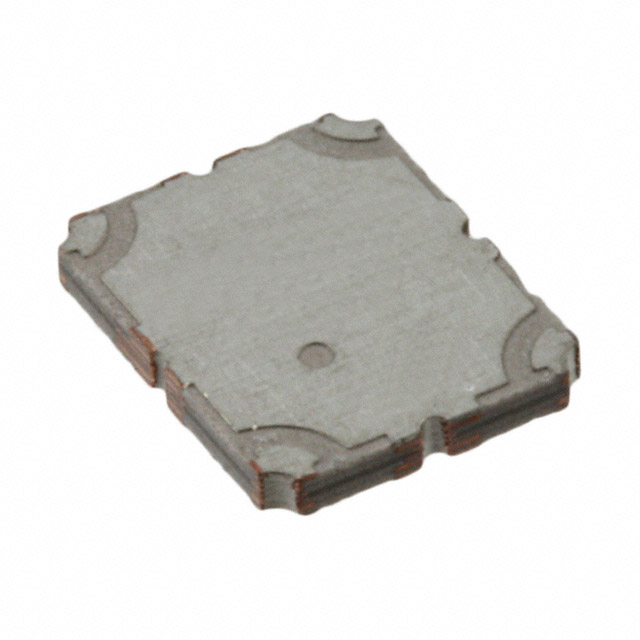

The X3C07P1-03S is a low-profile, high-performance 3dB, 90° hybrid coupler manufactured by Anaren Microwave. It is designed for applications in the US700 and LTE bands, as well as for balanced power amplifiers, low noise amplifiers, and signal distribution where tight amplitude and phase balance are required.
This coupler features a wide operating frequency range of 600-900 MHz, with specific performance metrics provided for sub-bands like 695-805 MHz and 731-881 MHz. It boasts a high power handling capability of up to 130 watts (average CW @ 95 ºC) and exhibits very low insertion loss, with a maximum of 0.20 dB. The isolation is rated at a minimum of 23 dB, and amplitude balance is tightly controlled to ±0.35 dB.
Manufactured in an easy-to-use, surface-mount package, the X3C07P1-03S is suitable for production-friendly assembly. It is constructed using materials with coefficients of thermal expansion compatible with common substrates like FR4 and polyimide. The operating temperature range is -55°C to +150°C, ensuring reliability in various environmental conditions. The part is supplied in tape and reel packaging.
-55 to +150°C.
2520 (6450 Metric) surface mount package.
600 to 900 MHz.
23 dB minimum.
0.2 dB maximum.
130 Watts CW at 95°C.
90 degrees nominal.
