| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Termination |

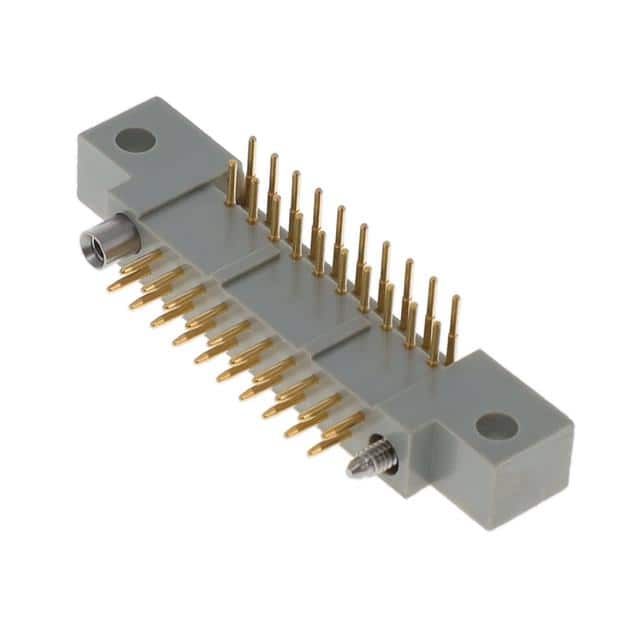

The AirBorn WTB20PR9J is a 20-position plug connector designed for backplane and specialized interconnection applications. It features male pins arranged in 2 rows with a 2.54mm (0.100") pitch, providing reliable signal or power connections. The connector is configured as a right-angle through-hole mount with solder termination, suitable for PCB designs requiring a low-profile right-angle interface. The contacts are gold-plated for corrosion resistance and reliable electrical performance. Additional features include a mating guide and mounting flange to ensure proper alignment and secure attachment during assembly. This connector is part of AirBorn's WTB series, known for rugged rectangular connectors used in military, aerospace, and industrial applications. The part is RoHS3 compliant and REACH unaffected, though these compliance claims are unverified. The connector has an MSL rating of 1 (unlimited) for moisture sensitivity. Note that the datasheet provided references a different part number, so verification of specifications is recommended.
| Qty | Low | High |
|---|---|---|
| 1+ | $47.95 | $47.95 |
| 10+ | $35.96 | $35.96 |
| 25+ | $28.98 | $28.98 |
| 100+ | $27.23 | $27.23 |
| 250+ | $26.37 | $26.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions.
2.54mm (0.100").
Through hole, right angle.
Gold.
Yes, it includes a mating guide and mounting flange.
2 rows.
Solder.
