| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination | |
| Termination Style |

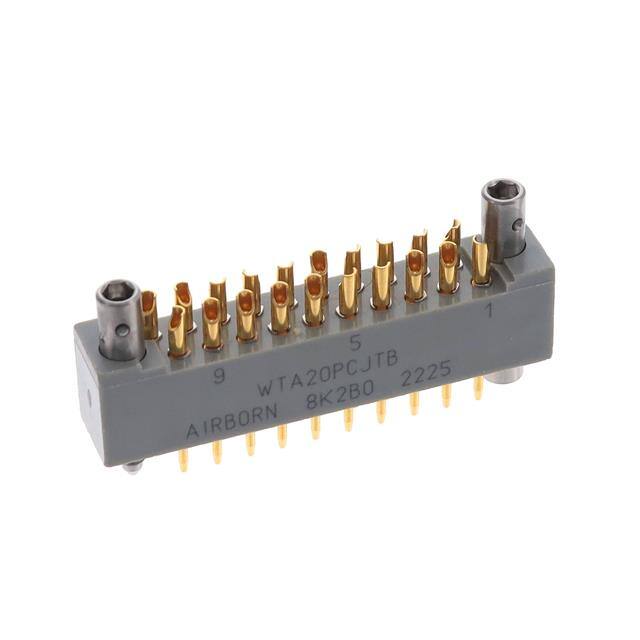

The AirBorn WTA20PCJTB is a rectangular connector designed for backplane interconnection. It is a plug connector with male pins, offering 20 positions in a 2-row configuration (10 columns). All positions are loaded, ensuring full connectivity.
The connector features a pitch of 2.54mm (0.100 inches) and is designed for free hanging (in-line) mounting, making it suitable for cable-to-board or cable-to-cable applications. Termination is via solder cups, compatible with discrete wire connections.
The contacts are finished with gold for reliable electrical performance and corrosion resistance. The connector includes a mating guide feature for alignment during mating.
This part is categorized under specialized backplane connectors and is manufactured by AirBorn, a reputable connector manufacturer.
| Qty | Low | High |
|---|---|---|
| 1+ | $74.05 | $74.05 |
| 10+ | $51.27 | $51.27 |
| 50+ | $40.25 | $40.25 |
| 100+ | $37.83 | $37.83 |
| 250+ | $37.06 | $37.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions.
2.54mm (0.100").
Free hanging (in-line).
Solder cup.
Gold.
Mating guide.
2 rows.
