| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Military Grade | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination | |
| Termination Style |

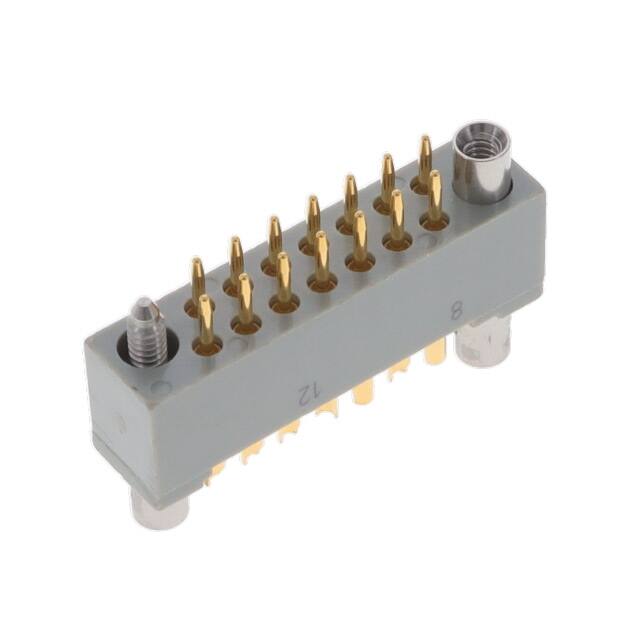

The AirBorn WTA14PCJTB is a rectangular PCB connector designed for backplane and specialized interconnect applications. It features a plug connector type with male pins, offering 14 positions arranged in 2 rows and 7 columns. The connector uses a 2.54mm (0.100") pitch, which is a standard spacing for many PCB interconnect designs.
Termination is via solder cup contacts, allowing for secure wire attachment. The contacts are finished with gold, providing reliable conductivity and corrosion resistance. The connector is designed for free hanging (in-line) mounting, making it suitable for cable-to-board or cable-to-cable connections where a fixed PCB mount is not required.
A mating guide feature is included to assist with proper alignment during connection. The connector is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited). It is categorized under specialized backplane connectors, suitable for use in various electronic systems requiring a robust, multi-pin interconnect solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $49.18 | $49.18 |
| 10+ | $44.46 | $44.46 |
| 25+ | $43.21 | $43.21 |
| 50+ | $42.50 | $42.50 |
| 100+ | $38.65 | $38.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Plug, Male Pins
14 positions, all loaded
2.54mm (0.100")
Free Hanging (In-Line)
Solder Cup
Gold
