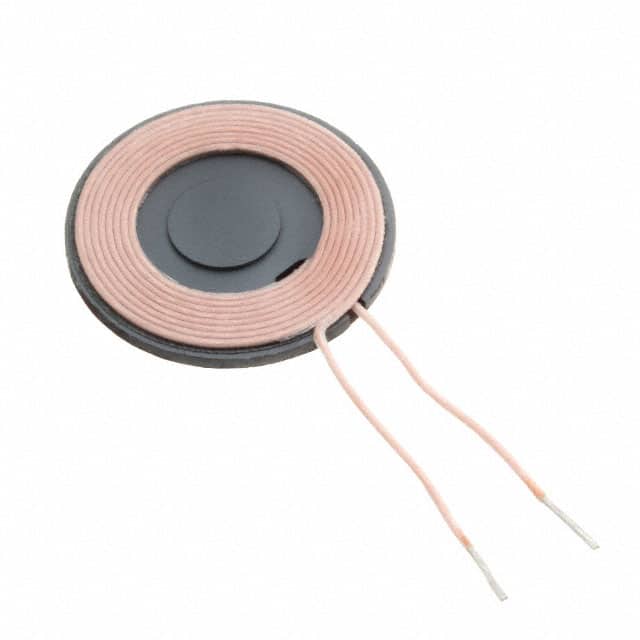

The TDK WT252512-8F2-SM is a single-coil, single-layer wireless charging transmitter coil designed for inductive power transfer applications. It features a nominal inductance of 2.76 µH ±5% measured at 1 MHz and 1 Vrms, with a typical DC resistance of 0.07 Ω and an AC resistance of 0.15 Ω ±10% under the same test conditions.
This through-hole component has a compact disc-shaped package measuring 0.98 inches in diameter by 0.08 inches in height (25.0 mm x 2.1 mm) and weighs 3.0 grams. It uses a USTC φ0.06*50 Layer 1 wire type with solder-coated lead wire terminations.
The coil operates over a temperature range of -30°C to 70°C and can be stored between -40°C and 85°C. It is RoHS3 compliant and halogen-free, making it suitable for environmentally conscious designs. Note that reflow and dip-flow soldering are not recommended for this product.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.68 | $4.68 |
| 10+ | $3.85 | $3.85 |
| 28+ | $3.53 | $3.53 |
| 56+ | $3.32 | $3.32 |
| 112+ | $3.13 | $3.13 |
| 252+ | $2.92 | $2.92 |
| 504+ | $2.76 | $2.76 |
| 1,008+ | $2.60 | $2.60 |
| 2,520+ | $2.55 | $2.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal inductance is 2.76 µH ±5% measured at 1 MHz and 1 Vrms.
The typical DC resistance is 0.07 Ω.
The operating temperature range is -30°C to 70°C.
Yes, it is RoHS3 compliant and also halogen-free.
It measures 0.98 inches in diameter by 0.08 inches in height (25.0 mm x 2.1 mm).
It is a through-hole component with solder-coated lead wire terminations.
