| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Average Efficiency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Ripple | |
| Voltage |

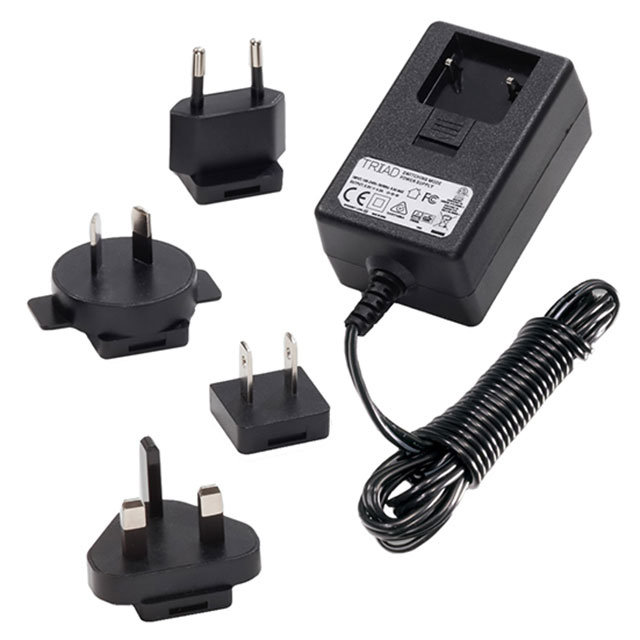

This Triad Magnetics WSX180-1330 is a versatile AC/DC wall mount adapter with an 18VDC output and a maximum current of 1.33A, providing 24W of power. It operates with an input voltage range of 90-264VAC and is designed for ITE (Commercial) applications.
The adapter features a compact thermoplastic molded enclosure and a 6-foot long 22AWG output cord. It meets Level VI efficiency standards, ensuring energy savings. The unit is protected against over-voltage and short circuits.
Key electrical specifications include a regulation of ±5% and a ripple of 200mVpk-pk maximum. The operating temperature range is 0°C to +45°C at full load, with a storage temperature range of -20°C to 60°C. It also complies with RoHS3 and REACH regulations.
The WSX180-1330 adapter has an output voltage of 18.0VDC and an output current of 1.33A.
The WSX180-1330 adapter has a power rating of 24W.
The WSX180-1330 adapter accepts an input voltage range of 90-264VAC.
The WSX180-1330 adapter meets the Level VI efficiency standard.
The WSX180-1330 adapter operates from 0°C to +45°C at full load.
The WSX180-1330 adapter uses a Barrel Plug connector with a 2.1mm I.D. x 5.5mm O.D. x 11.0mm size.
