| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Average Efficiency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Ripple | |
| Storage Temperature | |
| Voltage | |
| Width |

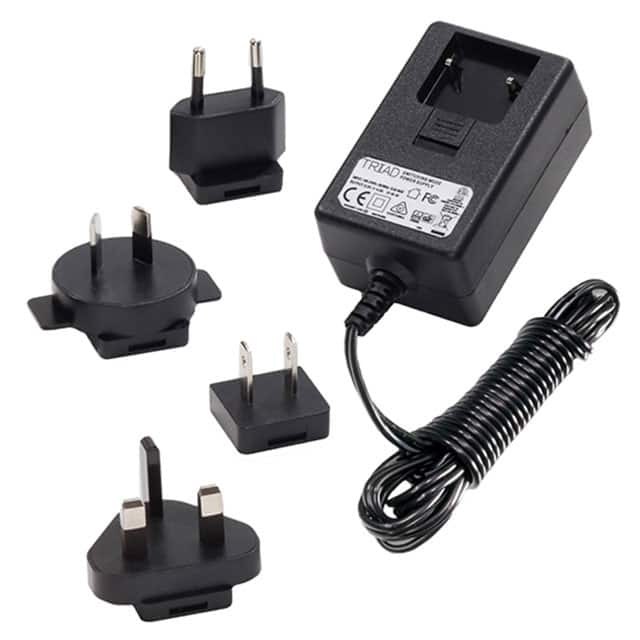

The Triad Magnetics WSX120-2000-R13 is an AC/DC wall mount adapter with an output voltage of 12.0VDC and an output current of 2.0A, providing a total power of 24W. It is designed for international use and features a wide input voltage range of 90-264VAC.
This adapter meets Level VI efficiency standards, with an average efficiency of 83.50% typ. and a no-load power consumption of less than 100mW. The operating temperature range is 0°C to +45°C at full load. It includes protections against overvoltage and short circuits.
The unit is housed in a thermoplastic molded enclosure and features a 6-foot long, 20 AWG output cord with a barrel plug (2.5mm I.D. x 5.5mm O.D. x 11.0mm). The input connector is multi-blade, suitable for international power outlets. It is certified by CE, cETLus, FCC, GS, and RCM.
Compliance includes RoHS3 and EISA 2007/CEC requirements. The adapter is suitable for ITE (Commercial) applications and is designed for wall mounting.
The adapter provides a regulated 12.0VDC output.
The maximum continuous output current is 2.0A.
The operating temperature range is 0°C to +45°C at full load.
This unit utilizes a wall mount form factor classified as Class II.
The attached output cord is nominally 6 feet long.
It meets Level VI efficiency standards and satisfies EISA 2007/CEC requirements.
