| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

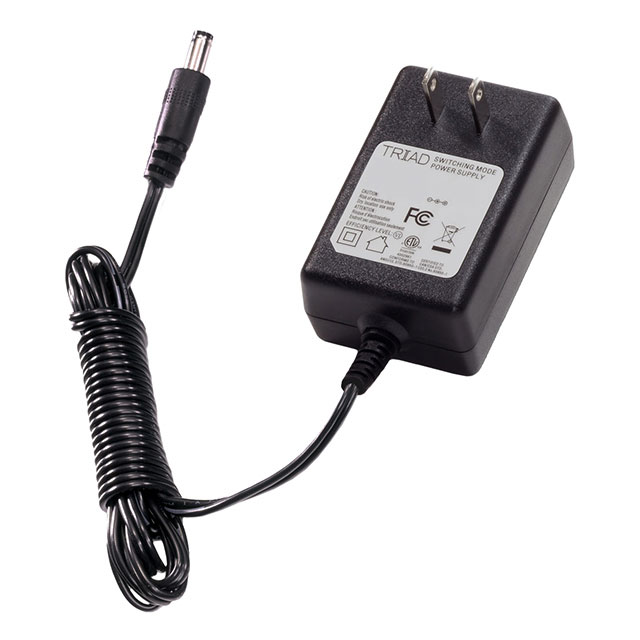

The Triad Magnetics WSU240-1500-R13 is an AC/DC external wall mount adapter designed for commercial ITE applications. It delivers a stable 24V output with a maximum current of 1.5A, providing a total power of 36W.
This adapter features a fixed blade input connector (NEMA 1-15P) and a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 11.0mm). It operates within a wide input voltage range of 90 to 264 VAC and is designed for North American regions.
With an efficiency rating of Level VI and a low no-load power consumption of 100mW (Max), this adapter is energy-efficient. The operating temperature range is from 0°C to 40°C. Its compact dimensions are 3.31" L x 2.09" W x 1.22" H (84.0mm x 53.0mm x 31.0mm), and it includes a 60" (1.52m) cord.
The adapter is classified as Class II and features negative center polarization. It is RoHS3 compliant, has an MSL rating of 1 Unlimited, and is REACH unaffected.
90-264 VAC
24V at 1.5A
Level VI
0°C to 40°C
Barrel plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm, negative center
60 inches (1.52m)
Bulk packaging, wall mount (Class II)
