| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

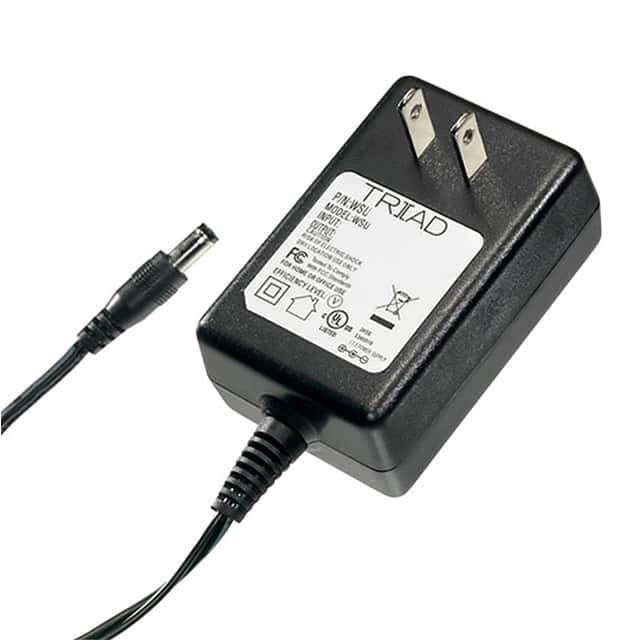

The Triad Magnetics WSU240-1000-R is a versatile AC/DC wall mount power adapter designed for applications requiring a stable 24V output at up to 24W. This unit features a NEMA 1-15P input connector suitable for North American outlets and a standard 2.1mm x 5.5mm x 11.0mm barrel plug output.
Engineered for efficiency, the WSU240-1000-R meets Level VI energy efficiency requirements, ensuring reduced energy consumption and lower heat generation. Its compact dimensions (77.0mm x 48.0mm x 31.0mm) and wall-mount form factor make it ideal for space-constrained designs. The adapter operates within a wide input voltage range of 100-240 VAC and has a maximum no-load power consumption of 100mW.
This power supply is suitable for ITE (Commercial) applications and carries cETLus approval. It includes a 72-inch (1.83m) cord for flexible placement. The RoHS3 compliant status indicates adherence to environmental regulations regarding hazardous substances.
The WSU240-1000-R has an output voltage of 24 VDC.
The maximum output current for the WSU240-1000-R is 1 A.
This power adapter has a power rating of 24 W.
The WSU240-1000-R meets Level VI efficiency standards.
The operating temperature range for the WSU240-1000-R is 0°C to 40°C.
The WSU240-1000-R uses a NEMA 1-15P input connector.
The output connector is a Barrel Plug with 2.1mm I.D. x 5.5mm O.D. x 11.0mm.
