| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Average Efficiency | |
| Cord Length | |
| Current | |
| Form | |
| Input Connector | |
| Input Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage |

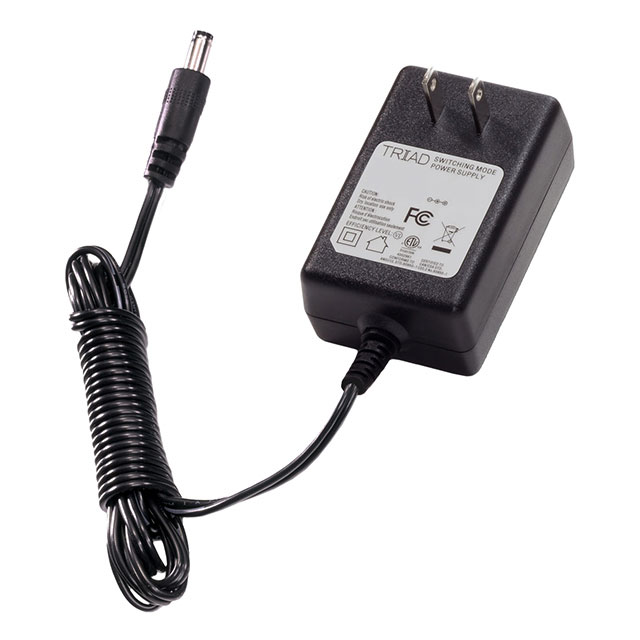

This Triad Magnetics WSU150-1600-R13 is an AC/DC wall mount adapter with a fixed blade input connector (NEMA 1-15P) and a barrel plug output connector (2.5mm I.D. x 5.5mm O.D.). It delivers a stable 15VDC output at a maximum current of 1.6A, providing a total power of 24W.
The adapter operates within a wide input voltage range of 90-264VAC and meets Level VI efficiency standards, ensuring energy savings with a no-load power consumption of less than 100mW. Its electrical specifications include line and load regulation of ±5% and a maximum ripple and noise of 150mVpk-pk.
Designed for commercial ITE applications, the WSU150-1600-R13 features a thermoplastic molded enclosure and operates reliably in temperatures from 0°C to 40°C. It is certified by cETLus and complies with safety standards like UL 62368-1. The unit includes over-voltage and short-circuit protection for enhanced safety.
Key mechanical parameters include dimensions of 77.0mm x 48.0mm x 31.0mm and a 6-foot output cord. The adapter is suitable for North American regions and comes in bulk packaging.
The adapter provides a 15VDC output at a maximum current of 1.6A.
The adapter has a power rating of 24W.
The input voltage range is 90-264VAC.
Yes, it meets Level VI efficiency standards.
The operating temperature range is 0°C to 40°C at full load.
It uses a Barrel Plug with a 2.5mm I.D. x 5.5mm O.D. x 11.0mm size.
