| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage |

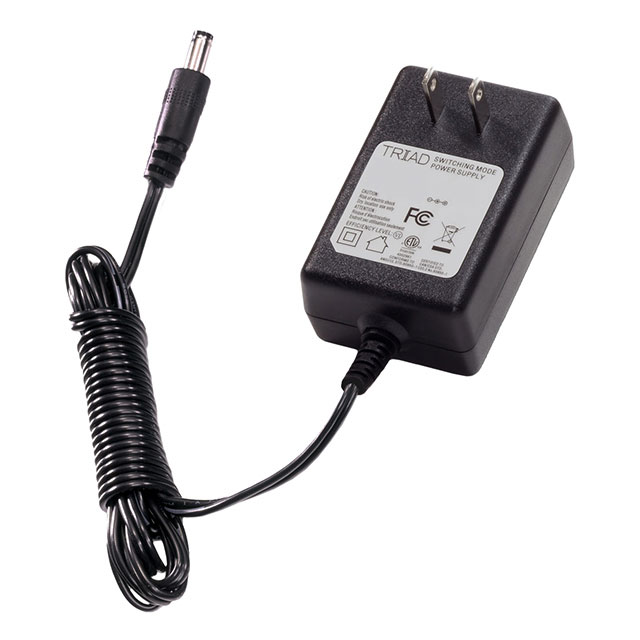

The Triad Magnetics WSU150-1200-R13 is an AC/DC external wall mount adapter designed for ITE (Commercial) applications. It provides a stable 15V output at a maximum current of 1.2A, delivering a total power of 18W.
This adapter features a fixed blade input and a NEMA 1-15P connector, with a barrel plug output (2.5mm I.D. x 5.5mm O.D. x 11.0mm). It operates within a wide input voltage range of 90 to 264 VAC and complies with Level VI efficiency standards, ensuring energy savings. The device is housed in a compact wall mount (Class II) form factor with dimensions of 77.0mm x 48.0mm x 31.0mm.
Designed for reliability, the WSU150-1200-R13 operates in temperatures from 0°C to 40°C and has a low no-load power consumption of 100mW maximum. It is RoHS3 compliant and suitable for use in North America.
The WSU150-1200-R13 provides a 15V output voltage at a maximum current of 1.2A.
The WSU150-1200-R13 adapter has a power rating of 18W.
The adapter accepts an input voltage range of 90 to 264 VAC.
Yes, it meets Level VI efficiency standards.
The operating temperature range is 0°C to 40°C.
It uses a barrel plug with dimensions of 2.5mm I.D. x 5.5mm O.D. x 11.0mm.
The adapter measures 77.0mm in length, 48.0mm in width, and 31.0mm in height.
