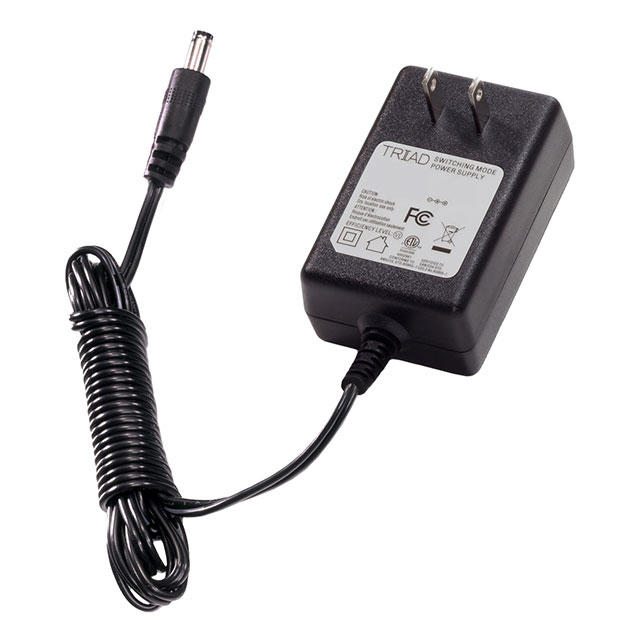

This Triad Magnetics WSU150-0800-13 is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 15VDC output with a maximum current of 0.8A, providing a total power of 12W. The adapter operates with a wide input voltage range of 90-264VAC and meets Level VI efficiency standards, ensuring energy savings.
The unit features a fixed blade input connector (NEMA 1-15P) and a standard barrel plug output (2.5mm I.D. x 5.5mm O.D. x 11.0mm). Its compact, molded thermoplastic enclosure measures 71.0mm x 43.0mm x 30.0mm, making it suitable for various installations. The adapter includes over-voltage and short-circuit protection for enhanced reliability.
With an operating temperature range of 0°C to 40°C at full load and a 5-year warranty, this adapter is built for dependable performance. It complies with safety standards including UL 62368-1 Class II and EMI standards like FCC Part 15 Subpart B.
The output voltage is 15VDC and the output current is 0.8A.
The nominal input voltage is 100-240VAC with an operating range of 90-264VAC.
The operating temperature range is 0°C to +40°C at full load.
It meets Level VI efficiency standards with an average efficiency of at least 82.96%.
It has a barrel plug with 2.5mm I.D. and 5.5mm O.D., and the polarity is positive center.
The maximum no-load power consumption is less than 100mW.
