| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Average Efficiency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage |

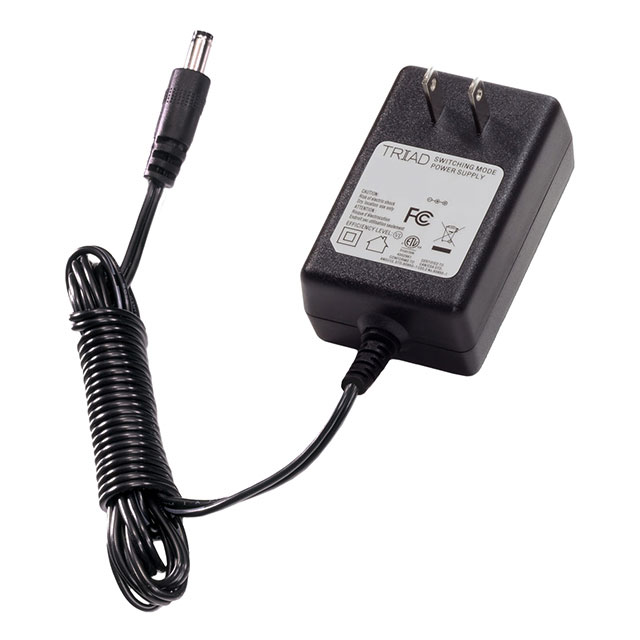

This Triad Magnetics WSU135-2660-13 is an AC/DC wall mount adapter designed for commercial ITE applications. It delivers a stable 13.5VDC output with a maximum current of 2.66A, providing a total power of 36W.
The adapter operates within a wide input voltage range of 90-264VAC, making it suitable for global use, and features a NEMA 1-15P input connector. The output is delivered via a standard barrel plug (2.5mm I.D. x 5.5mm O.D. x 11.0mm) with a 6ft cord. It meets Level VI efficiency standards, ensuring energy savings with a no-load power consumption of less than 100mW.
Designed for reliability, the unit operates within a temperature range of 0°C to 40°C at full load and is protected against over voltage and short circuits. The thermoplastic molded enclosure ensures durability. Compliance includes cETLus approval and RoHS3 status.
The adapter provides a 13.5VDC output at a maximum current of 2.66A.
This adapter has a power rating of 36W.
The input voltage range is 90-264VAC.
It meets the Level VI efficiency standard.
The operating temperature range is 0°C to 40°C at full load.
It uses a NEMA 1-15P input connector.
The output connector is a barrel plug with 2.5mm I.D. x 5.5mm O.D. x 11.0mm dimensions.
