| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Average Efficiency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage |

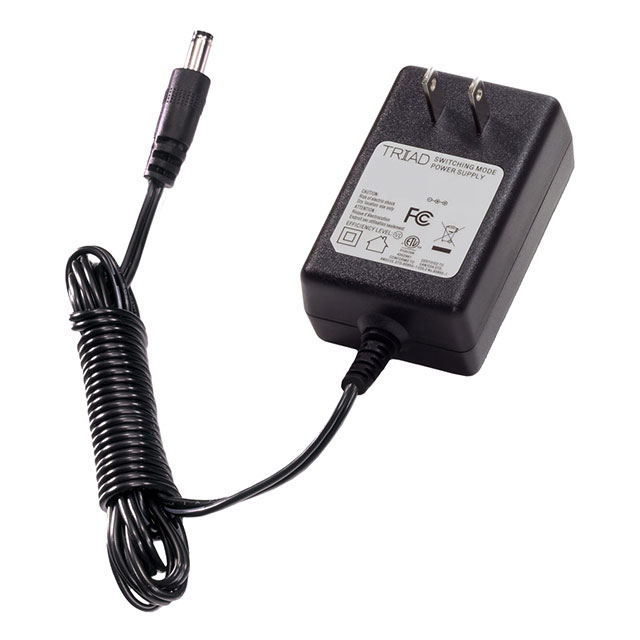

This AC/DC wall mount adapter from Triad Magnetics, model WSU135-1770-13, delivers a stable 13.5VDC output at a maximum current of 1.77A, providing a total power of 24W. Designed for commercial ITE applications, it features a fixed blade input connector (NEMA 1-15P) and a standard barrel plug output (2.5mm I.D. x 5.5mm O.D. x 11.0mm).
The adapter operates within a wide input voltage range of 90-264VAC and boasts an average efficiency of at least 86.19%, meeting the stringent Level VI efficiency requirements. It is designed for reliability with an operating temperature range of 0°C to 40°C at full load and includes over-voltage and short-circuit protection.
Constructed with a thermoplastic molded enclosure, this Class II double-insulated adapter is suitable for various wall-plug applications. Its compact dimensions (77.0mm x 48.0mm x 31.0mm) and a 60-inch (1.52m) cord length offer flexibility in placement. Safety certifications include cETLus compliance.
The WSU135-1770-13 adapter has an output voltage of 13.5VDC and a maximum output current of 1.77A.
The WSU135-1770-13 adapter has a power rating of 24W.
The adapter accepts an input voltage range of 90-264VAC.
Yes, it meets Level VI efficiency standards with an average efficiency of ≥86.19%.
The adapter can operate in temperatures ranging from 0°C to 40°C at full load.
It uses a Barrel Plug with a 2.5mm I.D. x 5.5mm O.D. x 11.0mm size.
