| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Average Efficiency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage |

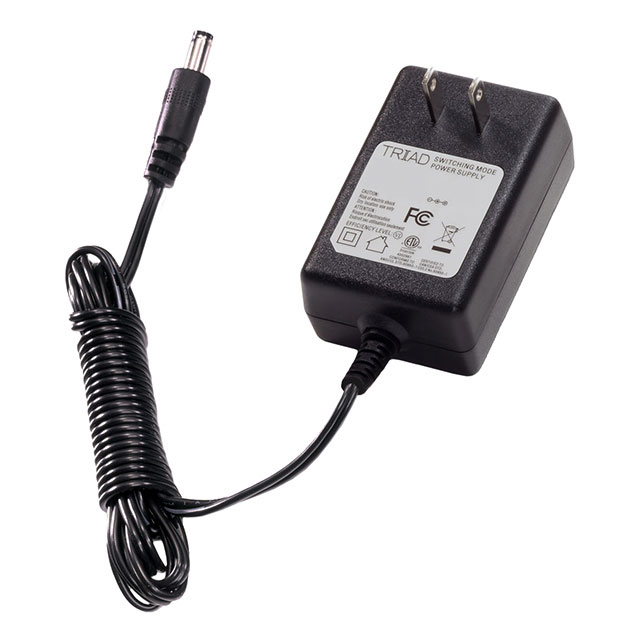

This Triad Magnetics WSU120-1000-R13 is an AC/DC wall mount adapter designed for commercial ITE applications. It operates with an input voltage range of 90-264VAC and delivers a stable 12VDC output at a maximum current of 1A, providing a total power of 12W.
The adapter meets Level VI efficiency standards, ensuring energy savings with a no-load power consumption of less than 100mW. It features a NEMA 1-15P input connector and a 2.5mm I.D. x 5.5mm O.D. x 11.0mm barrel plug output, with a 72-inch cord.
Designed for reliability, it operates within a temperature range of 0°C to 40°C and has a 5-year warranty. Safety approvals include cETLus certification, and it complies with EMI standards such as FCC Part 15 Subpart B. The unit is housed in a thermoplastic molded enclosure and is RoHS3 compliant.
The universal input voltage range is 90-264VAC, with a nominal rating of 100-240VAC at 50-60Hz.
The output is 12VDC at 1.0A, providing 12W of power.
The adapter operates from 0°C to +40°C at full load.
It is UL 62368-1 Class II double insulated certified (file E345519) and meets FCC Part 15B and ICES-003 for EMI.
It meets Level VI efficiency with an average efficiency of ≥82.96% and no-load power consumption below 100mW.
The output connector is a barrel plug with 2.5mm I.D. x 5.5mm O.D. x 11.0mm, negative center polarity, on a 6-foot (1.83m) cord.
The adapter comes with a 5-year warranty.
