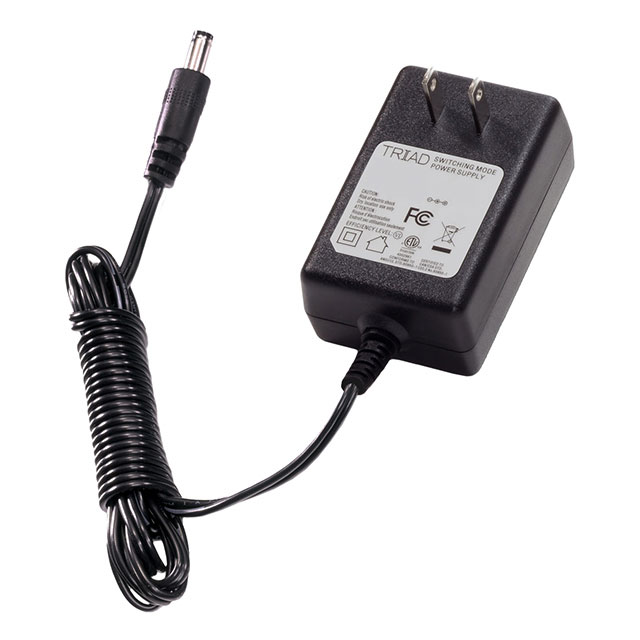

This Triad Magnetics WSU090-2500-13 is an AC/DC wall mount adapter designed for commercial ITE applications. It provides a stable 9VDC output at a maximum current of 2.5A, delivering a total power of 23W.
The adapter operates within a wide input voltage range of 90-264VAC, making it suitable for global use. It boasts a Level VI efficiency rating, ensuring energy savings with an average efficiency of at least 85.96% and a low no-load power consumption of under 100mW.
Safety and reliability are paramount, with cETLus approval and compliance with UL 62368-1 standards. The unit features over-voltage and short-circuit protection. Its thermoplastic molded enclosure and fixed blade input connector with a NEMA 1-15P plug ensure durability and ease of use. The output is delivered via a 6-foot cord with a standard 2.5mm I.D. x 5.5mm O.D. barrel plug.
The output is 9VDC at 2.5A.
The operating temperature range is 0°C to +40°C at full load.
It uses a barrel plug with a 2.5mm inner diameter and 5.5mm outer diameter, 11.0mm length.
It is UL 62368-1 Class II, Double Insulated certified with UL file number E345519.
It meets the Level VI efficiency standard with an average efficiency of at least 85.96%.
The no-load power consumption is less than 100mW.
The adapter comes with a 5-year warranty.
