| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Average Efficiency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage |

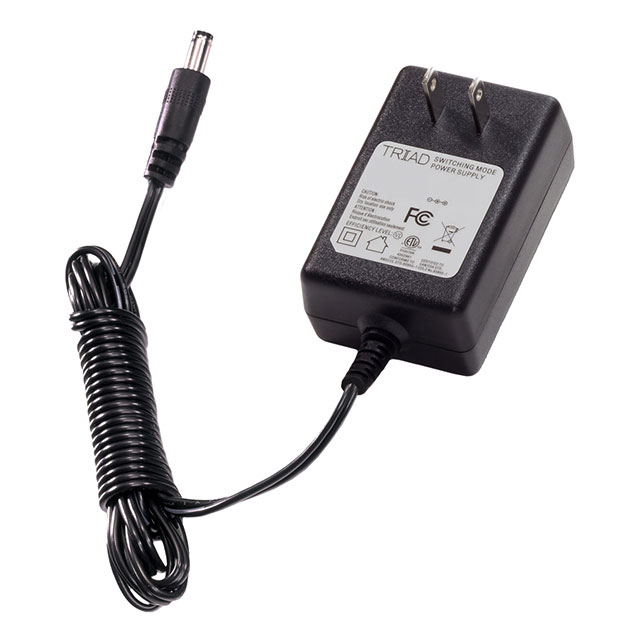

The Triad Magnetics WSU060-3000-R13 is an AC/DC wall mount adapter designed for commercial ITE applications. It delivers a stable 5.9VDC output at a maximum current of 3.0A, providing a total power of 18W.
This adapter features a wide input voltage range of 90-264VAC, making it suitable for global use, and operates with a NEMA 1-15P input connector. It boasts a Level VI efficiency rating, ensuring energy savings and reduced heat generation, with an average efficiency of ≥82.39% and a low no-load power consumption of less than 100mW.
Mechanical specifications include a compact thermoplastic molded enclosure with dimensions of 77.0mm x 48.0mm x 31.0mm. The output is delivered via a 5-foot cord with a standard barrel plug (2.5mm I.D. x 5.5mm O.D.). The adapter is designed for a 0°C to +40°C operating temperature range and includes safety certifications from cETLus.
Compliance includes RoHS3 and REACH unaffected status. The unit is protected against over voltage and short circuits, offering reliable power conversion for various electronic devices.
The WSU060-3000-R13 adapter has an output voltage of 5.9VDC and a maximum output current of 3.0A.
The power rating of the WSU060-3000-R13 adapter is 18W.
The input voltage range for the WSU060-3000-R13 is 90-264VAC.
Yes, the WSU060-3000-R13 meets the Level VI efficiency standard with an average efficiency of ≥82.39%.
The operating temperature range for the WSU060-3000-R13 is 0°C to +40°C at full load.
The output connector is a Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm.
The WSU060-3000-R13 is RoHS3 Compliant.
