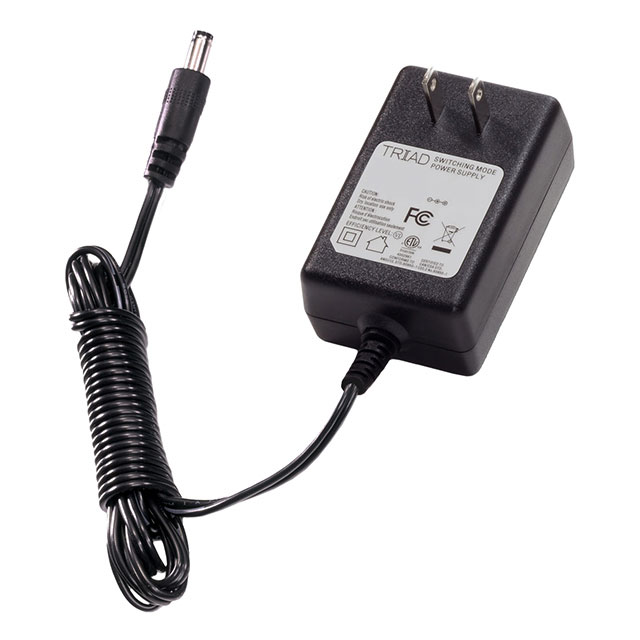

The Triad Magnetics WSU060-2000-R13 is an AC/DC external wall mount adapter designed for ITE (Commercial) applications. It provides a stable 5.9V output at a maximum current of 2A, delivering a total power of 12W. This adapter meets Level VI efficiency standards, ensuring energy conservation.
The unit features a fixed blade input connector (NEMA 1-15P) and a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 11.0mm). Its compact dimensions are 71.0mm x 42.8mm x 30.0mm, making it suitable for various space-constrained environments. The adapter operates within a temperature range of 0°C to 40°C and has a cord length of 1.52 meters (60 inches).
Designed as a Class II wall mount adapter, the WSU060-2000-R13 is compliant with RoHS3 standards and is unaffected by REACH regulations. It is approved by cETLus for safety and reliability.
The WSU060-2000-R13 adapter has an output voltage of 5.9V and a maximum output current of 2A.
The WSU060-2000-R13 adapter has a power rating of 12W.
The adapter accepts an input voltage range of 90 to 264 VAC.
The adapter meets Level VI efficiency standards.
The operating temperature range for the WSU060-2000-R13 is 0°C to 40°C.
It uses a barrel plug connector with dimensions of 2.5mm I.D. x 5.5mm O.D. x 11.0mm.
The WSU060-2000-R13 is RoHS3 Compliant.
