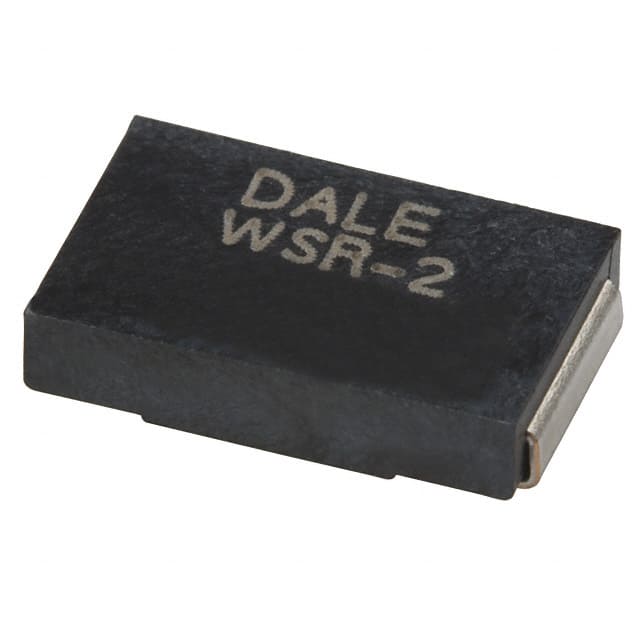

WSR5R0150FEA The Vishay Dale WSR5R0150FEA is a 5W Power Metal Strip® resistor with a resistance value of 0.015 Ohm and a tolerance of ±1%. It is designed for surface mount applications.
Mfr Part #:

WSR5R0150FEA

Available from 3 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale WSR5R0150FEA is a 5W Power Metal Strip® resistor with a resistance value of 0.015 Ohm and a tolerance of ±1%. It is designed for surface mount applications.
✓ Total Stock: 8,665 pcs
$ Price Range: $0.02

WSR5R0150FEA Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
6,358 pcs
On Request
6358 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
1,957 pcs
On Request
1957 pcs On Request 1 On Request On Request 14+ On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
350 pcs
On Request
350 pcs On Request 1 On Request On Request 14+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

WSR5R0150FEA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Composition
Features
Height
Length
Mounting Type
Number of Terminations
Operating Temperature
Power (Watts)
Ratings
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

WSR5R0150FEA Description

Short technical summary and product information.

The Vishay Dale WSR5R0150FEA is a high-power, low-value surface mount resistor from the WSR series. It features a 5W power rating and a resistance of 0.015 Ohm with a tight tolerance of ±1%. This resistor is constructed with a metal element and is qualified to AEC-Q200 standards, making it suitable for demanding applications.



The WSR5R0150FEA is housed in a 4527 J-Lead package and is designed for surface mounting. Its operating temperature range is -65°C to 275°C. Key features include anti-sulfur construction, current sensing capabilities, and pulse withstanding. The resistor also offers low inductance (0.5 nH to 5 nH) and low thermal EMF (< 3 μV/°C).



This component utilizes a proprietary processing technique to achieve extremely low resistance values. Its robust construction and improved thermal management make it ideal for current sensing, voltage division, and pulse applications where reliability and performance are critical.

WSR5R0150FEA Quick Information

Product Type: Surface Mount Resistor
Series: WSR5
Canonical Name: Vishay Dale WSR5 Power Metal Strip® Resistor
Subcategory: Surface Mount

WSR5R0150FEA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

WSR5R0150FEA Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

WSR5R0150FEA Features

  • 5W power rating at 70°C.
  • 0.015 Ohm resistance with ±1% tolerance.
  • AEC-Q200 qualified for reliability.
  • Surface mount 4527 J-Lead package.
  • Low inductance and thermal EMF.

WSR5R0150FEA Applications

  • Ideal for current sensing applications.
  • Suitable for voltage division circuits.
  • Used in pulse handling applications.
  • Automotive AEC-Q200 qualified.
  • Resistant to high sulfur environments.

WSR5R0150FEA FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the WSR5R0150FEA resistor?

The resistance value is 0.015 Ohm.

What is the power rating of the WSR5R0150FEA resistor?

The power rating is 5W.

What is the tolerance of the WSR5R0150FEA resistor?

The tolerance is ±1%.

What is the operating temperature range for the WSR5R0150FEA resistor?

The operating temperature range is -65°C to 275°C.

Is the WSR5R0150FEA resistor AEC-Q200 qualified?

Yes, the WSR5R0150FEA resistor is qualified to AEC-Q200.

What package type is the WSR5R0150FEA resistor?

The WSR5R0150FEA resistor is in a 4527 J-Lead package.
