| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

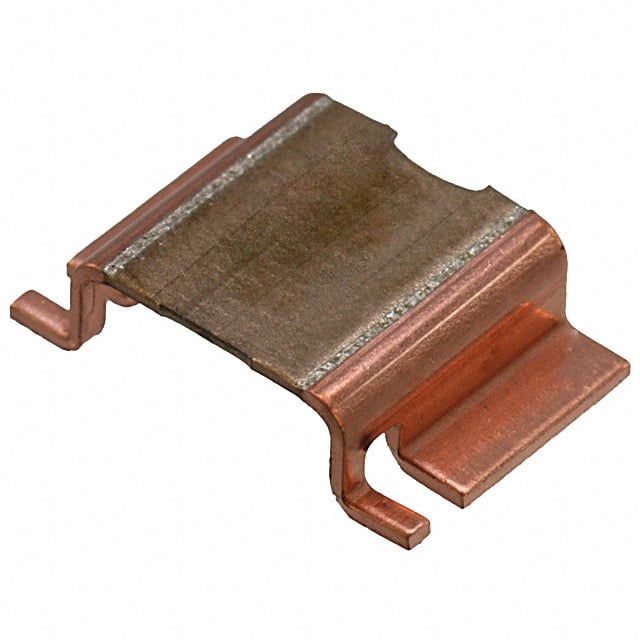

This Vishay Dale WSLP4026L5000FEA is a high-power surface mount chip resistor designed for demanding applications. It offers a low resistance value of 0.5 mOhms with a tight tolerance of ±1% and a significant power rating of 7W.
The resistor features a metal element composition and is built with an anti-sulfur construction, making it suitable for harsh environments. It is also moisture resistant and capable of handling pulses, further enhancing its robustness.
Designed for surface mounting, this component is housed in a 4026 package. It meets AEC-Q200 qualification standards, indicating its suitability for automotive and other critical applications. The operating temperature range is -65°C to 170°C.
Key electrical characteristics include a temperature coefficient of ±75ppm/°C. The dimensions are 10.16mm in length, 6.60mm in width, and 3.15mm in height.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 0.5 mOhms.
The power rating is 7W.
The tolerance is ±1%.
The temperature coefficient is ±75ppm/°C.
The operating temperature range is -65°C to 170°C.
Key features include anti-sulfur construction, automotive AEC-Q200 qualification, current sensing capability, moisture resistance, and pulse withstanding.
The package type is 4026, and it is a surface mount component.
