| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

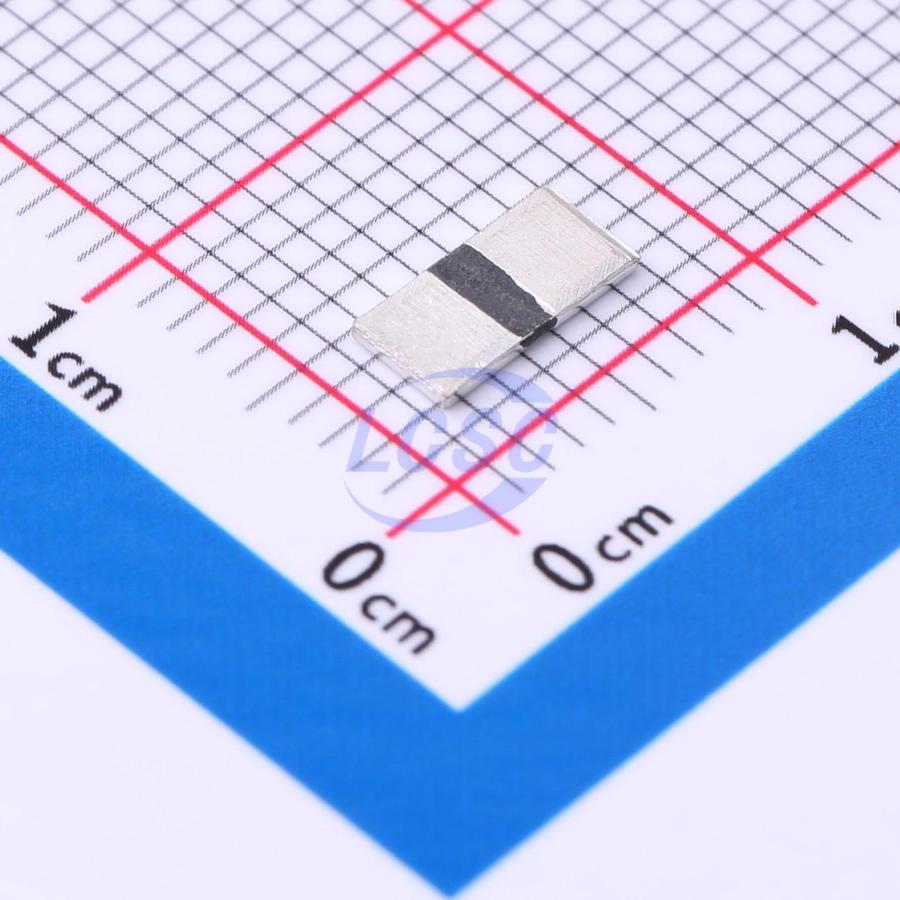

The Vishay Dale WSLP2512L5000FEA is a Power Metal Strip resistor designed for surface-mount applications. It features a very high power-to-footprint size ratio, delivering 3W of power in a 2512 package.
This resistor offers a low resistance value of 0.5 mΩ with a tolerance of ±1% and a temperature coefficient of ±75ppm/°C. Its construction is all-welded, making it suitable for current sensing, voltage division, and pulse applications. The device is also sulfur-resistant and qualified to AEC-Q200 standards.
The WSLP2512L5000FEA has a compact footprint with dimensions of 6.35mm x 3.18mm and a height of 0.89mm. It operates within a temperature range of -65°C to 170°C and has very low inductance, ranging from 0.5 nH to 5 nH, with low thermal EMF.
This component is ideal for designs requiring high power handling in a small form factor, such as automotive and industrial applications where precise current sensing and pulse durability are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 0.5 mΩ.
The power rating is 3W.
The tolerance is ±1%.
The temperature coefficient is ±75ppm/°C.
The dimensions are 6.35mm x 3.18mm.
The operating temperature range is -65°C to 170°C.
Yes, the WSLP2512L5000FEA resistor is AEC-Q200 qualified.
