Mfr Part #:

WSLP25123L000FEA

Q: What is the operating temperature range for this resistor?

The operating temperature range is -65°C to 170°C.

Q: What package size is the WSLP25123L000FEA resistor?

The package size is 2512 (6432 Metric).

Q: Does this resistor have sulfur resistance?

Yes, it has sulfur resistance by construction.

Available from 3 distributors

Mfr Name: Vishay

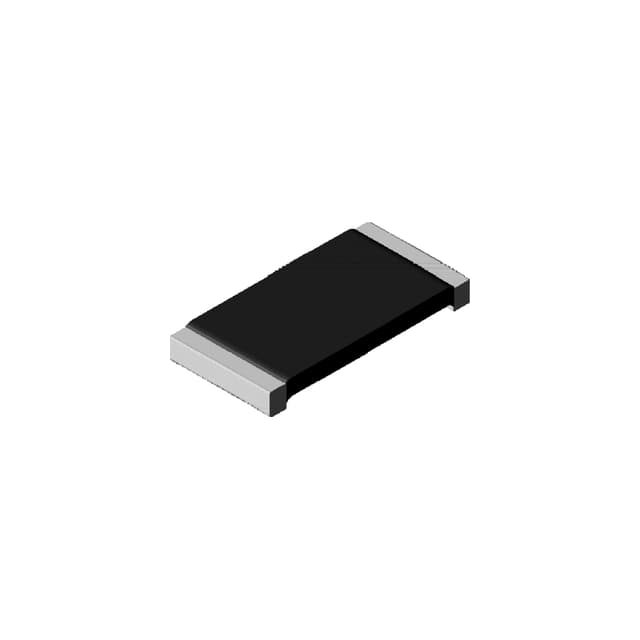

The Vishay Dale WSLP25123L000FEA is a 3W surface mount chip resistor with a resistance of 3 mΩ and a tolerance of ±1%. It is part of the WSLP series and features AEC-Q200 qualification.

✓ Total Stock: 7,788 pcs

$ Price Range: $0.02

WSLP25123L000FEA Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Smaxon Electronics ✓ Non-Authorised Inventory information	7,480 pcs On Request	7480 pcs	On Request	1	On Request	On Request	17+	On Request	On Request
Fe Components ✓ Non-Authorised Inventory information	300 pcs On Request	300 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
ADI/AAR OEM Supply ✓ Non-Authorised Inventory information	8 pcs On Request	8 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

WSLP25123L000FEA Description

Short technical summary and product information.

This Vishay Dale WSLP25123L000FEA is a high-power surface-mount resistor designed for demanding applications. It offers a very low resistance value of 3 mΩ with a tight tolerance of ±1% and a power rating of 3W.

The resistor is constructed using Vishay's Power Metal Strip® technology, ensuring excellent performance in current sensing, voltage division, and pulse applications. It features sulfur resistance by construction, making it suitable for harsh environments, and has very low inductance (0.5 nH to 5 nH) and low thermal EMF (< 3 μV/°C).

Designed for surface mounting, the component comes in a 2512 (6432 Metric) package with dimensions of 6.35mm x 3.18mm and a height of 0.89mm. It operates within a temperature range of -65°C to 170°C and is qualified to AEC-Q200 standards, indicating its suitability for automotive applications.

Key features include its high power-to-footprint ratio, all-welded construction, and proprietary processing for extremely low resistance values. The WSLP series is ideal for applications requiring precise current measurement and high power handling in a compact form factor.

WSLP25123L000FEA Quick Information

Product Type: Chip Resistor - Surface Mount

Series: WSLP

Canonical Name: Vishay Dale WSLP Series 3 mΩ ±1% 3W Surface Mount Power Metal Strip Resistor, 2512 Package

Subcategory: Surface Mount Resistor

WSLP25123L000FEA Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

WSLP25123L000FEA Estimated Pricing

Qty	Low	High
1+	$0.02	$0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

WSLP25123L000FEA Features

3W power rating in a 2512 package.
Very low 3 mΩ resistance value.
AEC-Q200 qualified for automotive use.
Sulfur resistant construction for harsh environments.
Low inductance and thermal EMF.

WSLP25123L000FEA Applications

Ideal for current sensing applications.
Suitable for voltage division circuits.
Used in pulse handling applications.
Designed for automotive environments.

WSLP25123L000FEA FAQs

7 frequently asked questions generated from this part’s specifications.

What is the resistance value of the WSLP25123L000FEA resistor?

The resistance value is 3 mΩ.

What is the power rating of the WSLP25123L000FEA resistor?

The power rating is 3W.

What is the tolerance of the WSLP25123L000FEA resistor?

The tolerance is ±1%.

What is the operating temperature range for this resistor?

The operating temperature range is -65°C to 170°C.

What package size is the WSLP25123L000FEA resistor?

The package size is 2512 (6432 Metric).

Is this resistor AEC-Q200 qualified?

Yes, it is AEC-Q200 qualified.

Does this resistor have sulfur resistance?
