| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,518 pcs
|
2518 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
72 pcs
|
72 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Voltage | |
| Width |

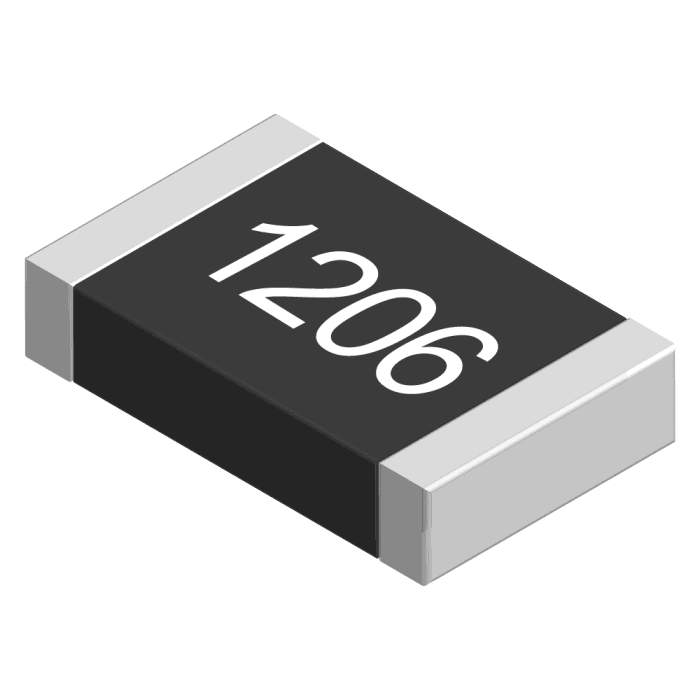

The Vishay Dale WSLP1206R0500FEA is a high-power, low-value surface mount resistor from the WSLP series. It features a 1206 package size with a power rating of 1W and a resistance value of 50 mΩ with a tight tolerance of ±1%. This resistor is constructed with a metal element and has a very low inductance, making it suitable for current sensing, voltage division, and pulse applications.
Designed for demanding environments, the WSLP1206R0500FEA operates within a temperature range of -65°C to 170°C and has a low thermal EMF. It is AEC-Q200 qualified, indicating its suitability for automotive applications. The surface mount package requires wraparound termination style.
Key electrical specifications include a temperature coefficient of ±75ppm/°C and a voltage rating of 200V. The resistor's construction provides sulfur resistance and is ideal for use in high sulfur environments. Its very high power to footprint size ratio makes it an efficient component for space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 50 mΩ.
The tolerance is ±1%.
The power rating is 1W.
The operating temperature range is -65°C to 170°C.
The package size is 1206.
Yes, the WSLP1206R0500FEA resistor is AEC-Q200 qualified.
The inductance is between 0.5 nH and 5 nH.
