| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,298 pcs
|
6298 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

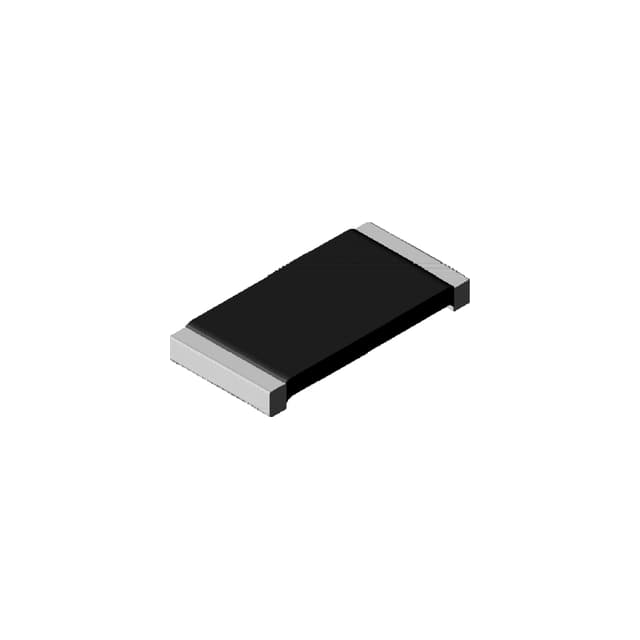

The Vishay Dale WSLP1206R0180FEA is a high-power, low-value surface-mount resistor from the WSLP series. It offers a 1W power rating in a 1206 package size, with a resistance value of 18mΩ and a tolerance of 1%.
This resistor is constructed with a metal element and features a welded construction, making it suitable for current sensing, voltage division, and pulse applications. Its operating temperature range is -65°C to 170°C. The component is AEC-Q200 qualified, indicating its suitability for automotive applications. Additional features include anti-sulfur, moisture resistance, and pulse withstanding capabilities.
The WSLP1206R0180FEA has a low inductance of 0.5 nH to 5 nH and a low thermal EMF of less than 3 μV/°C. Its dimensions are 3.20mm x 1.60mm (0.126" x 0.063"), with a height of 0.89mm (0.035"). It is supplied in a Tape & Reel package.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 18 mΩ.
The power rating is 1W.
The tolerance is ±1%.
The operating temperature range is -65°C to 170°C.
Yes, the WSLP1206R0180FEA resistor is AEC-Q200 qualified.
Key features include anti-sulfur construction, automotive AEC-Q200 qualification, current sensing capability, moisture resistance, and pulse withstanding.
The package size is 1206.
