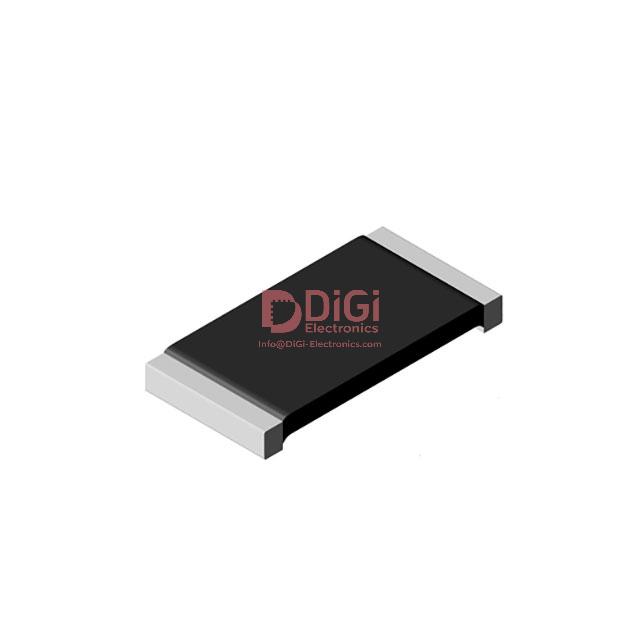

WSL1206R0100FTA The Vishay Dale WSL1206R0100FTA is a surface mount chip resistor with 10 mOhms resistance and a 1% tolerance. It is rated for 0.25W and features automotive AEC-Q200 qualification.
Mfr Part #:

WSL1206R0100FTA

Available from 1 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale WSL1206R0100FTA is a surface mount chip resistor with 10 mOhms resistance and a 1% tolerance. It is rated for 0.25W and features automotive AEC-Q200 qualification.
✓ Total Stock: 5,943 pcs
$ Price Range: $0.02

WSL1206R0100FTA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
5,943 pcs
On Request
5943 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

WSL1206R0100FTA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Composition
Features
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Ratings
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

WSL1206R0100FTA Description

Short technical summary and product information.

The Vishay Dale WSL1206R0100FTA is a surface mount chip resistor designed for demanding applications. It offers a precise resistance value of 10 mOhms with a tight tolerance of ±1% and a power rating of 0.25W (1/4W).



This resistor is constructed with a metal element and features automotive AEC-Q200 qualification, making it suitable for automotive environments. Additional features include current sense, moisture resistance, and pulse withstanding capabilities. The operating temperature range is -65°C to 170°C, with a temperature coefficient of ±75ppm/°C.



The component is housed in a 1206 package size, measuring 3.20mm in length and 1.60mm in width. It is supplied in tape and reel packaging, suitable for automated assembly processes.

WSL1206R0100FTA Quick Information

Product Type: Chip Resistor - Surface Mount
Series: WSL
Canonical Name: Vishay Dale WSL1206R0100FTA Chip Resistor - Surface Mount
Subcategory: Surface Mount

WSL1206R0100FTA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

WSL1206R0100FTA Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

WSL1206R0100FTA Features

  • 10 mOhms resistance with 1% tolerance.
  • 0.25W power rating for demanding applications.
  • Automotive AEC-Q200 qualified.
  • Metal element construction for reliability.
  • 1206 package for surface mount assembly.

WSL1206R0100FTA Applications

  • Suitable for automotive applications.
  • Ideal for current sensing circuits.
  • Used in high-reliability systems.
  • Designed for pulse withstanding.

WSL1206R0100FTA FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the WSL1206R0100FTA resistor?

The resistance value is 0.01 Ohms.

What is the tolerance of the WSL1206R0100FTA resistor?

The tolerance is ±1%.

What is the power rating of the WSL1206R0100FTA resistor?

The power rating is 0.25W, or 1/4W.

What is the operating temperature range for the WSL1206R0100FTA resistor?

The operating temperature range is -65°C to 170°C.

What package size is the WSL1206R0100FTA resistor supplied in?

The supplier device package is 1206.

What are the key features of the WSL1206R0100FTA resistor?

Key features include Automotive AEC-Q200 qualification, Current Sense, Moisture Resistant, and Pulse Withstanding.
