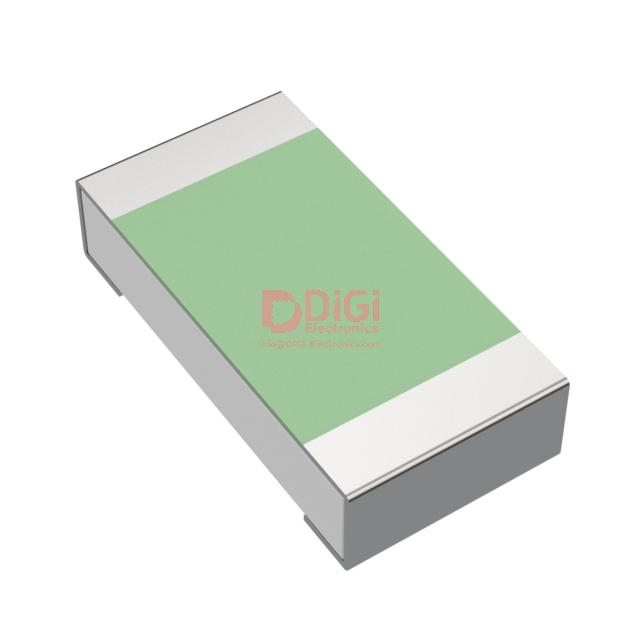

WSHP2818R1000FEA The Vishay Dale WSHP2818R1000FEA is a surface mount chip resistor with a resistance of 0.1 Ohms and a tolerance of ±1%. It is rated for 10W of power.
Mfr Part #:

WSHP2818R1000FEA

Available from 1 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale WSHP2818R1000FEA is a surface mount chip resistor with a resistance of 0.1 Ohms and a tolerance of ±1%. It is rated for 10W of power.
✓ Total Stock: 45 pcs
$ Price Range: $0.02

WSHP2818R1000FEA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
45 pcs
On Request
45 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

WSHP2818R1000FEA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Composition
Features
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Ratings
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

WSHP2818R1000FEA Description

Short technical summary and product information.

This Vishay Dale WSHP2818R1000FEA is a surface mount chip resistor designed for demanding applications. It offers a precise resistance value of 0.1 Ohms with a tight tolerance of ±1%, ensuring accuracy in circuit performance.



The resistor is built to handle significant power, with a rating of 10W, making it suitable for high-power circuits. Its operating temperature range spans from -65°C to 170°C, providing reliability in various environmental conditions. The component features include Automotive AEC-Q200 qualification, current sensing capabilities, moisture resistance, and pulse withstanding, highlighting its suitability for automotive and industrial applications.



Packaged in a 2818 size format, this component is designed for surface mounting. Its construction utilizes a metal element composition, contributing to its robust performance characteristics. The component also meets RoHS3 compliance and has a Moisture Sensitivity Level (MSL) of 1.

WSHP2818R1000FEA Quick Information

Product Type: Chip Resistor - Surface Mount
Series: WSHP
Canonical Name: Vishay Dale WSHP2818R1000FEA Chip Resistor - Surface Mount
Subcategory: Surface Mount

WSHP2818R1000FEA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

WSHP2818R1000FEA Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

WSHP2818R1000FEA Features

  • 0.1 Ohms resistance with ±1% tolerance.
  • 10W power rating for high-power applications.
  • Wide operating temperature range of -65°C to 170°C.
  • AEC-Q200 qualified for automotive use.
  • Surface mount 2818 package size.

WSHP2818R1000FEA Applications

  • Ideal for automotive power circuits.
  • Suitable for current sensing applications.
  • Used in high-power signal conditioning.
  • Applicable in pulse handling circuits.

WSHP2818R1000FEA FAQs

5 frequently asked questions generated from this part’s specifications.
What is the resistance value of the WSHP2818R1000FEA resistor?

The resistance value is 0.1 Ohms.

What is the tolerance of the WSHP2818R1000FEA resistor?

The tolerance is ±1%.

What is the power rating of the WSHP2818R1000FEA resistor?

The power rating is 10W.

What is the operating temperature range for the WSHP2818R1000FEA resistor?

The operating temperature range is -65°C to 170°C.

What package size is the WSHP2818R1000FEA resistor supplied in?

The resistor is supplied in the 2818 package size.
