| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,200 pcs
|
1200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
37 pcs
|
37 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Dielectric Withstanding Voltage | |
| Features | |
| Height | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

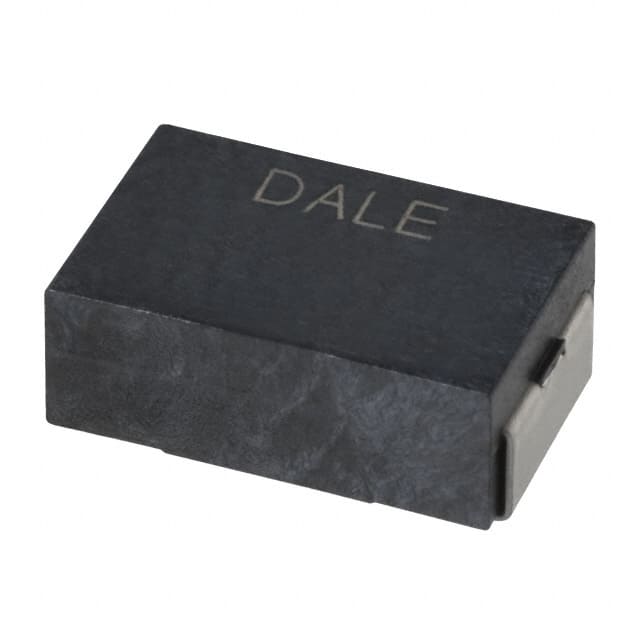

The Vishay Dale WSC452720R00FEA is a high-power surface mount resistor from the WSC series. It features a wirewound construction and molded encapsulation, providing excellent stability under various environmental conditions.
This resistor offers a resistance value of 20 Ohms with a tight tolerance of ±1%. It is rated for 2 Watts of power and has a temperature coefficient of ±20ppm/°C. The operating temperature range spans from -65°C to +275°C, making it suitable for demanding applications.
Designed with wraparound terminations, the WSC452720R00FEA comes in a 4527 J-Lead package. Its construction ensures superior surge capability and excellent frequency response. The component is also noted for its pulse-withstanding capability and very low inductance.
This resistor is ideal for current sensing, voltage division, and pulse applications where precision and reliability are critical. Its robust design and wide operating temperature range contribute to its suitability for various industrial and automotive environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 20 Ohms.
The tolerance is ±1%.
The power rating is 2W.
The temperature coefficient is ±20ppm/°C.
The operating temperature range is -65°C to +275°C.
It is supplied in a 4527 J-Lead package.
