| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Dielectric Withstanding Voltage | |
| Features | |
| Height | |
| Insulation Resistance | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Temperature Range | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

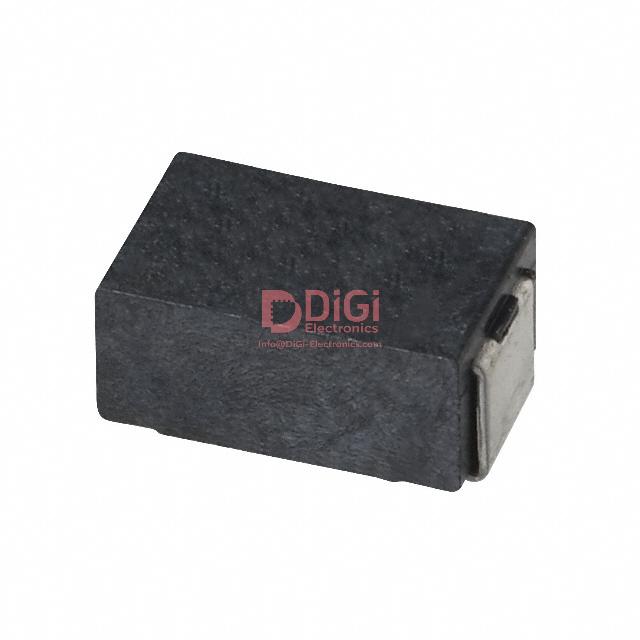

This Vishay Dale WSC251520R00FEA is a precision power wirewound resistor designed for surface mount applications. It features all-welded construction and molded encapsulation, offering excellent stability under various environmental conditions.
The resistor has a resistance value of 20 Ohms with a tight tolerance of ±1% and a power rating of 1W at 70°C. It is qualified to AEC-Q200 Rev. D, making it suitable for automotive applications. The operating temperature range is -65°C to +275°C.
The component comes in a 2515 J-Lead package with dimensions of 0.250" L x 0.150" W (6.35mm x 3.81mm) and a maximum seated height of 0.125" (3.17mm). It has two terminations and a wirewound composition.
Key electrical specifications include a temperature coefficient of ±50ppm/°C, a dielectric withstanding voltage greater than 500 VAC, and an insulation resistance greater than 10⁹ Ω. The series is the WSC.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 20 Ohms.
The tolerance is ±1%.
The power rating is 1W.
The temperature coefficient is ±50ppm/°C.
The operating temperature range is -65°C to 275°C.
The package type is 2515 J-Lead.
Yes, the resistor is AEC-Q200 qualified.
