| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Tape & Reel | |
| Voltage | |
| Width |

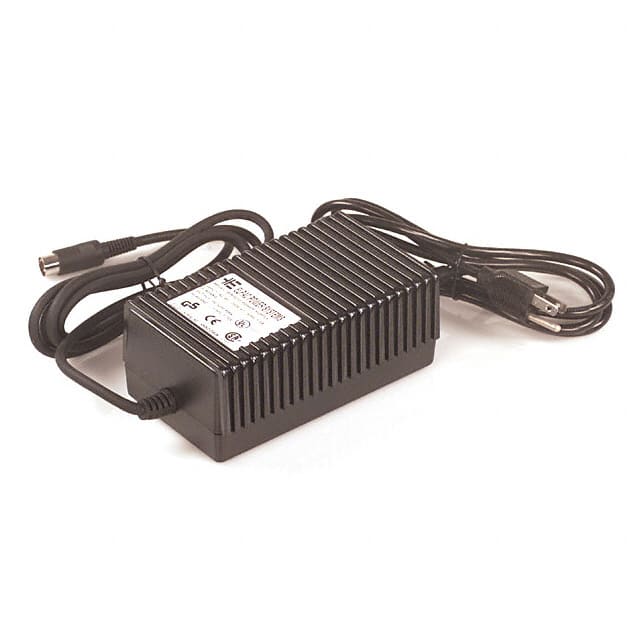

The Inventus Power WRI5215-D5 is an AC/DC desktop adapter designed for ITE (Commercial) applications. It delivers a stable 30V output at 53W of power, with a current rating of 1.75A. The adapter features an efficiency of 75% and operates within a temperature range of 0°C to 40°C.
Designed for ease of integration, it includes an IEC 320-C14 input connector and a 5-pin DIN output connector. The physical dimensions are 165.0mm in length, 98.0mm in width, and 66.0mm in height. This desktop form factor adapter is suitable for use in North America and is RoHS3 compliant.
Its robust construction and reliable performance make it a suitable choice for various commercial electronic equipment requiring a regulated DC power source. The adapter's specifications ensure consistent power delivery for demanding applications.
The output voltage is 30V DC.
The output current is 1.75A.
The maximum power is 53W.
The efficiency is 75%.
The operating temperature range is 0°C to 40°C.
The input connector is IEC 320-C14.
The output connector is a 5-pin DIN.
