| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

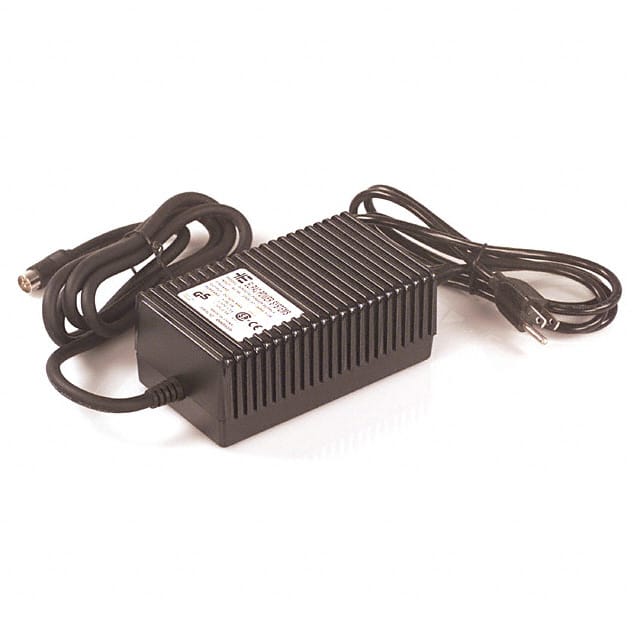

The Inventus Power WRI4232-D5 is a versatile AC/DC desktop power adapter with a power rating of 42W. It delivers multiple output voltages including 5V, 12V, and -12V, with corresponding currents of 4.8A, 1.5A, and 500mA respectively. This adapter is designed for ITE (Commercial) applications and operates within a temperature range of 0°C to 40°C.
Featuring an IEC 320-C14 input connector and a DIN 5-pin output connector, the WRI4232-D5 offers a robust form factor suitable for desktop use (Class I). Its dimensions are 165.0mm in length, 98.0mm in width, and 66.0mm in height. The adapter is designed for use in North America and has an efficiency rating of 75%.
This power supply is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1, indicating it is suitable for a wide range of manufacturing environments. The REACH status is unaffected, simplifying integration into various product designs.
The WRI4232-D5 provides three output voltages: 5V, 12V, and -12V.
The operating temperature range is 0°C to 40°C.
The total power dissipation is 42W.
It uses an IEC 320-C14 input connector.
It is a Desktop (Class I) form factor.
The dimensions are 165mm x 98mm x 66mm.
It is designed for ITE (Commercial) applications.
