| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Medical Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Tape & Reel | |
| Voltage |

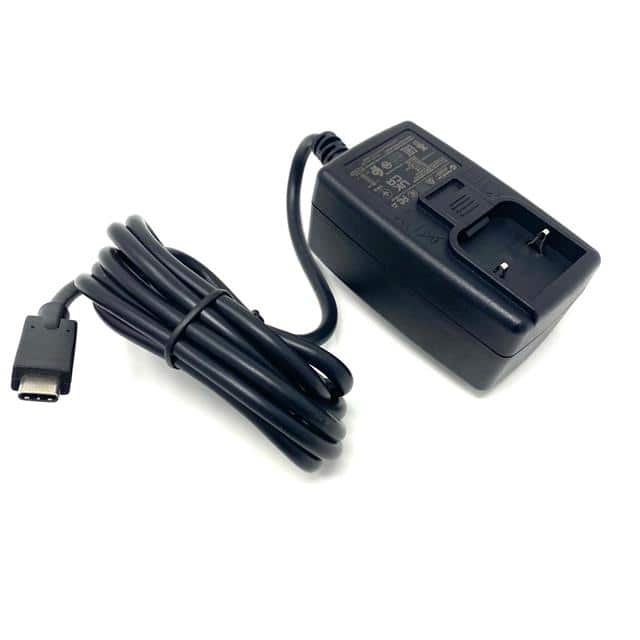

The GlobTek WR9QZ1800USBPPSCIMR6B is a versatile AC/DC wall mount adapter designed for ITE (Commercial) and Medical applications. This power supply delivers up to 36W of power, with output voltages ranging from 5.0V up to 21.0V, including programmable power supply (PPS) options. It accepts a universal input voltage of 100-240V AC at 50-60 Hz and features interchangeable blades for global use.
The adapter utilizes a USB Type-C receptacle for its output, compliant with Directive (EU) 2022/2380 and the Radio Equipment Directive (RED) 2014/53/EU. It is designed with a compact form factor, measuring 74.0mm x 43.5mm x 36.8mm, and features a cord length of 1.50 meters. The unit operates within a temperature range of -10°C to 40°C and boasts high efficiency, meeting USA DOE Level VI and EU Eco-design Directive standards.
Key features include multiple safety approvals such as CB, CCC, cETLus, FCC, and LPS, ensuring reliable and safe operation. The WR9QZ1800USBPPSCIMR6B is suitable for various commercial and medical devices requiring a flexible and efficient power source.
100-240 VAC at 50-60 Hz.
5V, 9V, 15V, 20V, and adjustable ranges 5-11V, 5-16V, 5-21V.
-10°C to 40°C.
74.0mm x 43.5mm x 36.8mm (L x W x H).
USB C Receptacle.
Level VI and CoC Tier 2.
75 mW maximum.
