| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Tape & Reel | |
| Voltage | |
| Width |

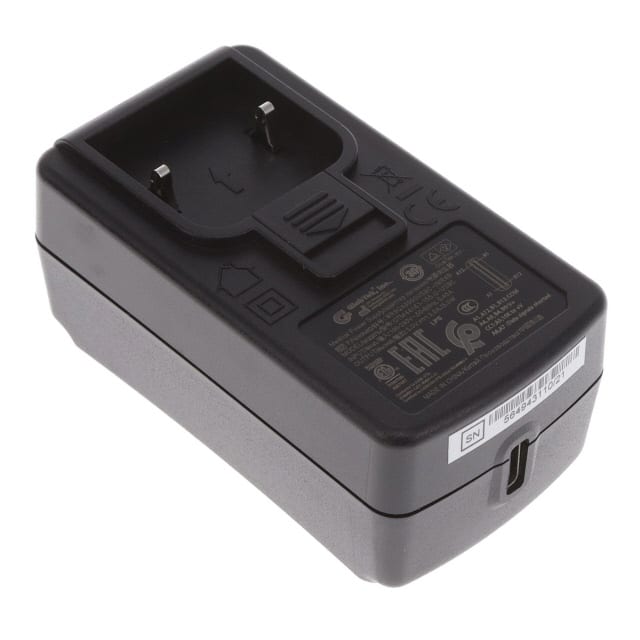

The GlobTek WR9QZ1800USBCFG2R6B is a versatile AC/DC wall mount power adapter designed for ITE and medical applications. It operates with an input voltage range of 100-240V AC at 50-60 Hz, making it suitable for international use.
This adapter delivers up to 36W of power, with selectable output voltages ranging from 5V to 20V and corresponding output currents up to 3.0A. It features a USB Type C receptacle for output connectivity and meets USA DOE Level VI and EU Eco-design efficiency standards. The unit is designed as a Class II, wall-mountable adapter.
Key specifications include dimensions of 74.4mm x 41.0mm x 35.3mm and an operating temperature range of -10°C to 40°C. It complies with various safety standards including IEC 60601-1, IEC 60950-1, and IEC 62368-1, and holds approvals from agencies like CB, CCC, cETLus, and FCC.
The WR9QZ1800USBCFG2R6B has a maximum output power of 36W.
This adapter offers selectable output voltages of 5V, 5.8V, 9V, 12V, 15V, 15.1V, and 20V.
The input voltage range is 100-240V AC.
It uses a USB C Receptacle for the output connection.
The operating temperature range is -10°C to 40°C.
Yes, it meets USA DOE Level VI and EU Eco-design standards.
