| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Duration | |
| Efficiency | |
| Form | |
| Halogen Free | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

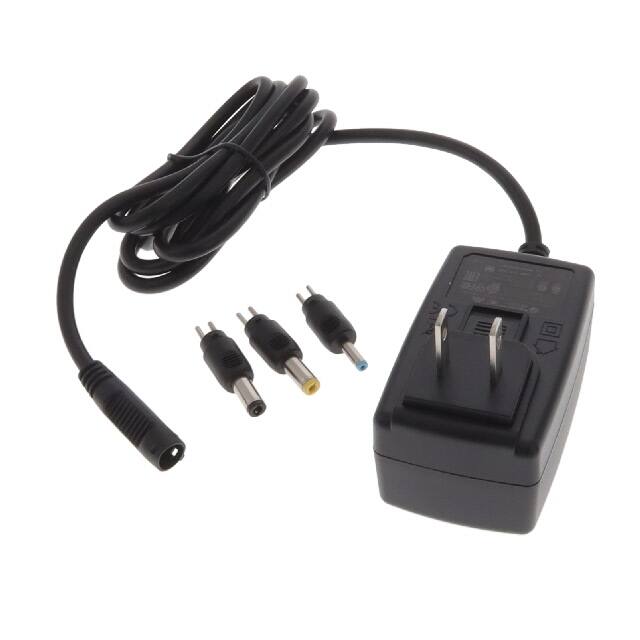

The GlobTek, Inc. WR9QX312T00NACFR6B is an AC/DC external wall mount adapter designed for versatile power supply needs. It delivers a 48V output at a maximum of 310mA, providing 15W of power.
This adapter meets Level VI efficiency standards and CoC Tier 2 requirements, ensuring energy efficiency. It operates within a wide input voltage range of 90-264 VAC and features a multi-blade input connector. The adapter is designed for wall mounting (Class II) and includes various barrel plug output connectors.
Key specifications include an operating temperature range of -20°C to 40°C and a low no-load power consumption of 75mW maximum. Its dimensions are 74.0mm x 43.5mm x 36.8mm, with a cord length of 1.50m. The adapter complies with international standards such as 60335-1, 60601-1, 60950-1, and 62368-1.
Applications for this adapter include Household Appliances, ITE (Commercial), and Medical devices. It is RoHS3 Compliant and REACH Unaffected.
The input voltage range is 90 to 264 VAC.
The output voltage is 48V and the maximum output current is 310mA.
The power rating is 15W.
It meets Level VI and CoC Tier 2 efficiency standards.
The operating temperature range is -20°C to 40°C.
It uses a barrel plug kit with three tip sizes: 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm.
It is a wall mount (Class II) adapter.
