| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

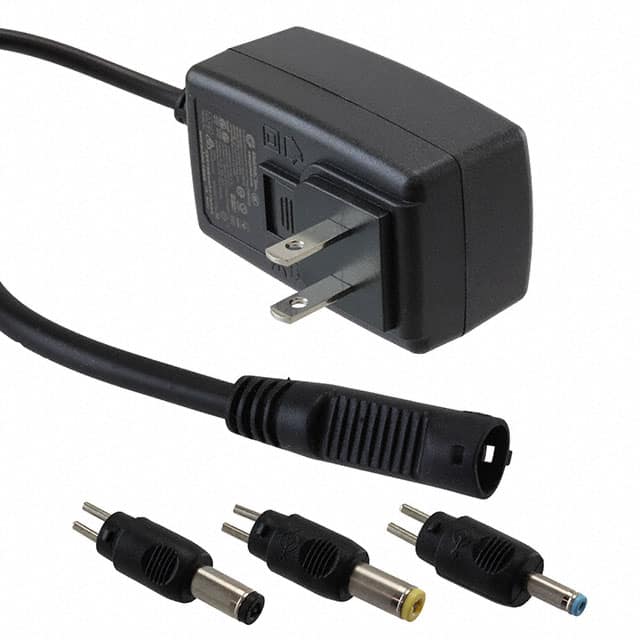

The GlobTek, Inc. WR9QI750T00NAIMR6B is a regulated switchmode AC-DC power supply designed as a wall-plug adapter. It operates with an input voltage range of 100-240V AC at 50-60 Hz, making it suitable for international applications.
This adapter delivers a stable 24V output at 0.75A, providing a total power of 18W. It adheres to USA DOE Level VI and Eco-design Directive 2009/125/EC efficiency standards, ensuring minimal energy waste. The unit features a wall-mount form factor (Class II) and includes a 1.20m cord.
Designed for versatility, the WR9QI750T00NAIMR6B is approved by multiple agencies including UL, cETLus, CE, and VCCI. Its applications span household appliances, ITE (Commercial), and Medical equipment. The output connector is a barrel plug kit supporting common sizes (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm), and the input connector is multi-blade, sold separately.
Key specifications include an operating temperature range of -20°C to 40°C and a maximum no-load power consumption of 75mW. The dimensions are 74.0mm x 43.5mm x 36.8mm.
100-240 VAC, 50-60 Hz.
24V at 0.75A (18W).
-20°C to 40°C.
Level VI.
Maximum 75mW.
Household appliances, ITE (commercial), and medical devices.
It is approved to standards including UL, CE, CCC, PSE, CB, ETL, and medical 60601-1-11.
