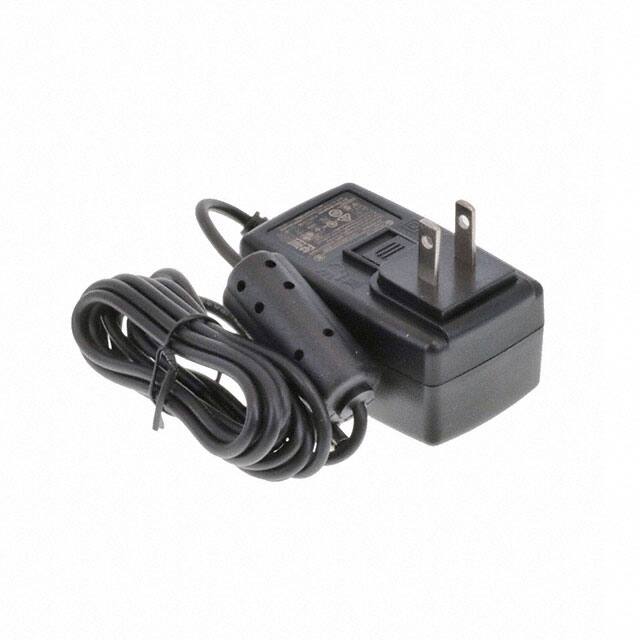

WR9QI750LCPNNAR6B The GlobTek, Inc. WR9QI750LCPNNAR6B is an AC/DC wall mount adapter providing 24V at 0.75A for 18W output power. It features Level VI efficiency and a 100-240V AC input rating.
Mfr Part #:

WR9QI750LCPNNAR6B

Mfr Name: GlobTek, Inc.
GlobTek, Inc.
The GlobTek, Inc. WR9QI750LCPNNAR6B is an AC/DC wall mount adapter providing 24V at 0.75A for 18W output power. It features Level VI efficiency and a 100-240V AC input rating.
Stock on Request

WR9QI750LCPNNAR6B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Height
Input Connector
Input Frequency
Input Type
Input Voltage
Length
No Load Power Consumption
Operating Temperature
Output Connector
Polarization
Power (Watts)
Region Utilized
Standard Number
Voltage
Width
View Similar Products (0)

WR9QI750LCPNNAR6B Description

Short technical summary and product information.

This GlobTek, Inc. WR9QI750LCPNNAR6B is a regulated switchmode AC-DC power supply designed for ITE (Commercial) applications. It operates with an input voltage range of 100-240V AC at 50-60 Hz, making it suitable for international use.



The adapter delivers a stable 24V output at 0.75A, providing a total of 18W of power. It meets USA DOE Level VI efficiency standards and has a low no-load power consumption of 75mW maximum.



Key features include a compact wall mount (Class II) form factor with dimensions of 74.0mm x 43.5mm x 34.0mm. The output connector is a standard 5.5mm x 2.5mm barrel plug with a 11.0mm length and positive center polarization. The input utilizes a multi-blade system, sold separately, allowing for regional adaptability.



This power supply is compliant with numerous safety and regulatory standards, including 60950-1 and 62368-1, and carries approvals from agencies such as CB, CE, cULus, and FCC. It is designed for operation in ambient temperatures between 0°C and 40°C.

WR9QI750LCPNNAR6B Quick Information

Product Type: AC DC Desktop, Wall Adapters
Canonical Name: GlobTek, Inc. WR9QI750LCPNNAR6B AC/DC Wall Mount Adapter, 24V, 0.75A, 18W
Subcategory: AC DC Wall Adapter

WR9QI750LCPNNAR6B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

WR9QI750LCPNNAR6B Features

  • 18W output power capability.
  • 24V DC output at 0.75A.
  • 100-240V AC universal input.
  • Meets Level VI efficiency standards.
  • Compact wall mount (Class II) design.

WR9QI750LCPNNAR6B Applications

  • Suitable for ITE commercial equipment.
  • Ideal for international power needs.
  • Used with devices requiring 24V DC.
  • Designed for plug-in power applications.

WR9QI750LCPNNAR6B FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage and current for the WR9QI750LCPNNAR6B?

The WR9QI750LCPNNAR6B provides an output voltage of 24.0V at 0.75A.

What is the power rating of the WR9QI750LCPNNAR6B adapter?

The adapter has a power rating of 18 W.

What is the input voltage range for this power supply?

The input voltage range is 100-240 VAC.

What is the operating temperature range for the WR9QI750LCPNNAR6B?

The operating temperature range is 0°C to 40°C.

What type of output connector does the WR9QI750LCPNNAR6B use?

It uses a Barrel Plug with dimensions 2.5mm I.D. x 5.5mm O.D. x 11.0mm.

Does the WR9QI750LCPNNAR6B meet Level VI efficiency standards?

Yes, it meets Level VI efficiency standards.
