| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

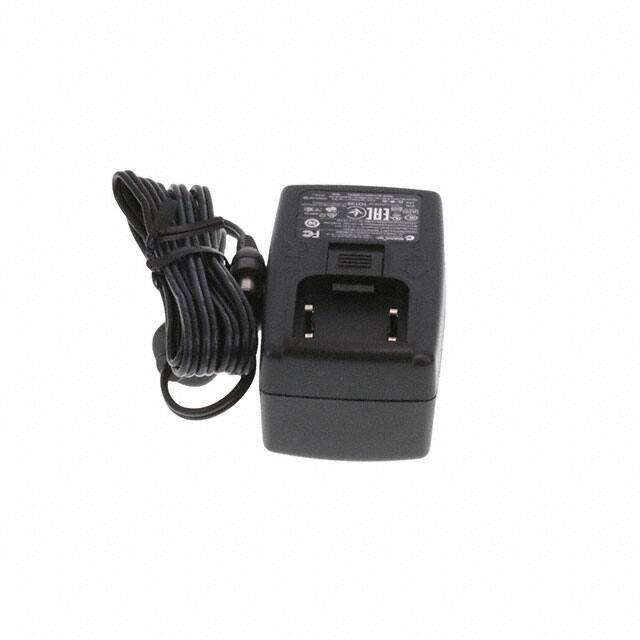

The GlobTek WR9QI750LCP-N(R6B) is a regulated switchmode AC-DC power supply designed for wall-plug-in use. This adapter delivers 18 watts of power with a stable 24V output at 0.75A, making it suitable for Information Technology Equipment (ITE) and commercial applications.
Featuring a compact, wall-mount form factor (Class II), it operates with a wide input voltage range of 100-240V AC at 50-60 Hz. The adapter adheres to stringent efficiency standards, meeting USA DOE Level VI and Eco-design Directive 2009/125/EC, (EU) 2019/1782 requirements. It includes a standard output connector with a 2.5mm inner diameter and 5.5mm outer diameter, center positive polarization, and a cord length of 1.83 meters.
This power supply boasts numerous international approvals, including CB 62368, CE, cULus, FCC, and RCM, ensuring compliance across various regions. The operating temperature range is from 0°C to 40°C. The input connector is a multi-blade type, sold separately, allowing for regional customization.
Key specifications include a low no-load power consumption of 75mW (Max) and compliance with safety standards such as IEC 60950-1 and IEC 62368-1. The dimensions are 74.0mm x 43.5mm x 34.0mm.
The WR9QI750LCP-N(R6B) provides an output voltage of 24.0V at 0.75A.
This adapter has a power rating of 18 W.
The input voltage range is 100-240V AC.
It meets Level VI efficiency standards.
The operating temperature range is 0°C to 40°C.
It uses a Barrel Plug with a 2.5mm I.D. x 5.5mm O.D. x 11.0mm size and center positive polarization.
It complies with standard numbers 60950-1 and 62368-1.
