| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

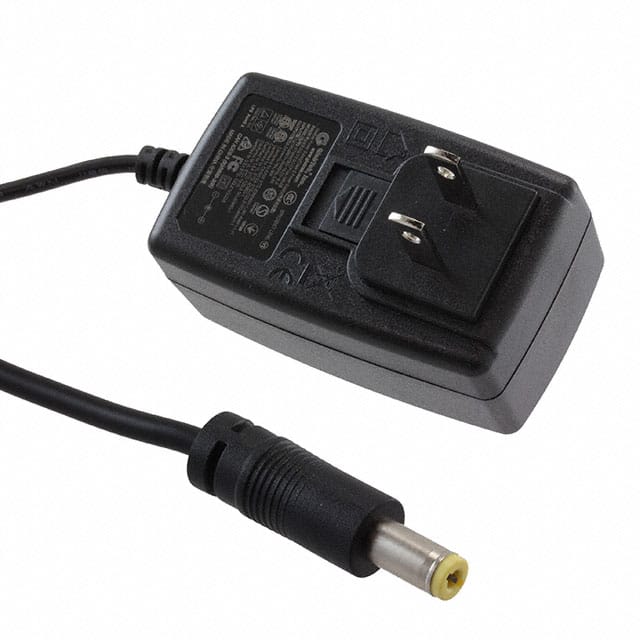

The GlobTek, Inc. WR9QI750CCPNAIMR6B is a versatile AC/DC wall mount adapter designed for reliable power conversion. It delivers a stable 24V output at a maximum current of 750mA, providing a total power of 18W. This adapter meets Level VI efficiency standards, ensuring optimal energy usage.
Designed for broad compatibility, the WR9QI750CCPNAIMR6B operates with an input voltage range of 90 to 264 VAC. It features a positive center polarization and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 11.0mm). The input connector is a multi-blade type, sold separately, allowing for regional flexibility.
This adapter is suitable for a range of applications, including household appliances, commercial ITE (Information Technology Equipment), and medical devices. It has received numerous agency approvals, including BIS, CB, CCC, CE, cETLus, EAC, ETL, LPS, NOM, PSE, RCM, S-Mark, UKRSepro, UL, and VCCI, confirming its compliance with international safety and performance standards. The operating temperature range is from -20°C to 40°C, and it is housed in a compact Class II wall mount form factor.
The WR9QI750CCPNAIMR6B provides a 24V output voltage at a maximum current of 750mA.
The adapter has a power rating of 18W.
The adapter accepts an input voltage range of 90 to 264 VAC.
Yes, it meets Level VI efficiency standards.
The dimensions are 74.0mm in length, 43.5mm in width, and 36.8mm in height.
It uses a Barrel Plug connector with dimensions 2.1mm I.D. x 5.5mm O.D. x 11.0mm.
It is suitable for Household Appliances, ITE (Commercial), and Medical applications.
