| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

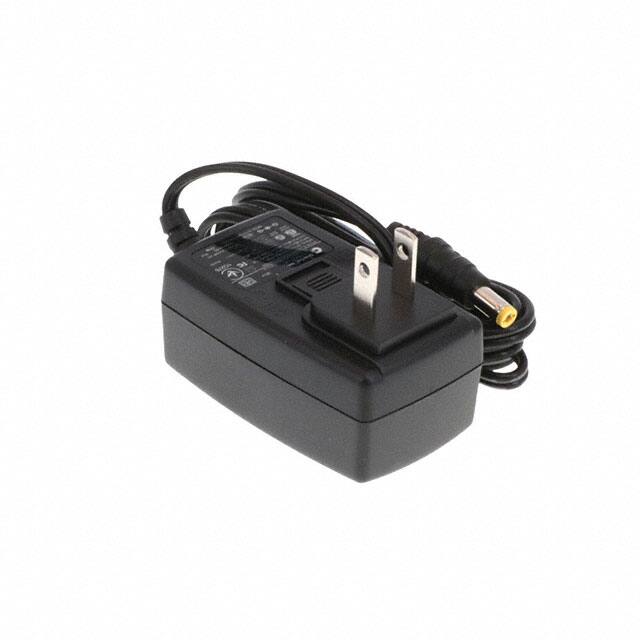

The GlobTek WR9QI1660CCPN-NAR6B is a versatile AC/DC wall mount adapter designed for various applications including household appliances, ITE (Commercial), and medical equipment. It delivers a stable 24V output with a maximum power of 40W, ensuring efficient operation.
This adapter meets Level VI efficiency standards, minimizing energy consumption. It features a NEMA 1-15P input connector and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 11.0mm) with positive center polarization. The unit operates within a temperature range of 0°C to 40°C and has a low no-load power consumption of 75mW maximum.
Designed as a Class II wall mount unit, it offers a compact form factor with dimensions of 43.5mm x 74.0mm x 35.3mm. The included cord length is 47.2 inches (1.20m). The adapter is approved by multiple agencies including CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, UKRSepro, UL, and VCCI, adhering to international standards such as 1310, 60335-1, 60601-1-11, 60601-1-2, 60950-1, and 62368-1.
The adapter provides an output voltage of 24V and a current of 1.66A.
The adapter has a power rating of 40W.
The adapter meets Level VI efficiency standards.
The operating temperature range is 0°C to 40°C.
It uses a NEMA 1-15P input connector, with multi-blade options sold separately.
The output connector is a barrel plug with 2.1mm I.D. x 5.5mm O.D. x 11.0mm dimensions and positive center polarization.
The adapter is RoHS3 Compliant.
