| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

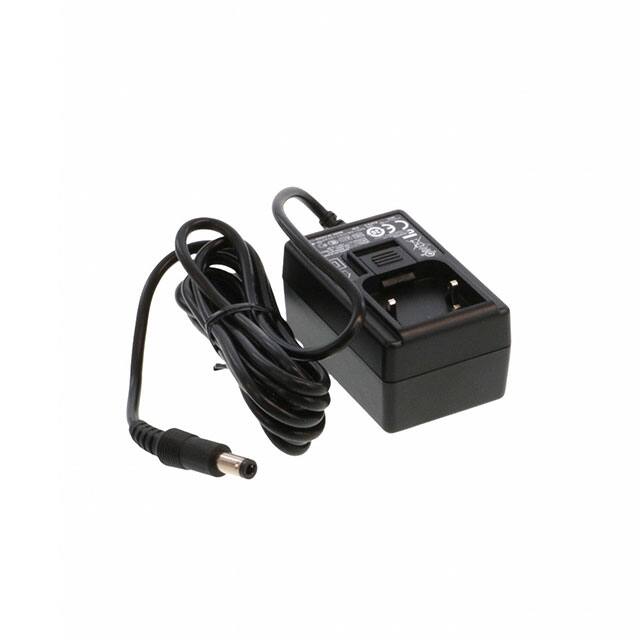

The GlobTek WR9QG400LCP-N(R6B) is a regulated switchmode AC-DC power supply designed for wall plug-in use. It operates with an input voltage range of 100-240V AC at 50-60 Hz, making it suitable for international applications.
This adapter delivers a stable 15V output at 0.4A, providing a total of 6W of power. It features a 5.5mm x 2.5mm barrel plug output connector with a positive center pin and a cord length of 1.83 meters. The unit is designed for ITE (Commercial) applications and complies with efficiency standards such as USA DOE Level VI and Eco-design Directive 2009/125/EC.
With dimensions of 64.0mm x 40.5mm x 31.5mm, this wall mount adapter is compact. It operates within a temperature range of 0°C to 40°C and has a low no-load power consumption of 75mW maximum. The adapter carries multiple safety and regulatory approvals, including cULus, CE, FCC, and RCM, indicating its suitability for various global markets.
The WR9QG400LCP-N(R6B) provides an output voltage of 15.0V at 0.4A.
This adapter has a power rating of 6W.
The adapter accepts an input voltage range of 100-240V AC.
It meets the Level VI efficiency standard.
The dimensions are 64.0mm in length, 40.5mm in width, and 31.5mm in height.
It uses a Barrel Plug with dimensions 2.5mm I.D. x 5.5mm O.D. x 11.0mm.
The operating temperature range is 0°C to 40°C.
