WR9QG2667CCPN(R6B)
GlobTek, Inc.

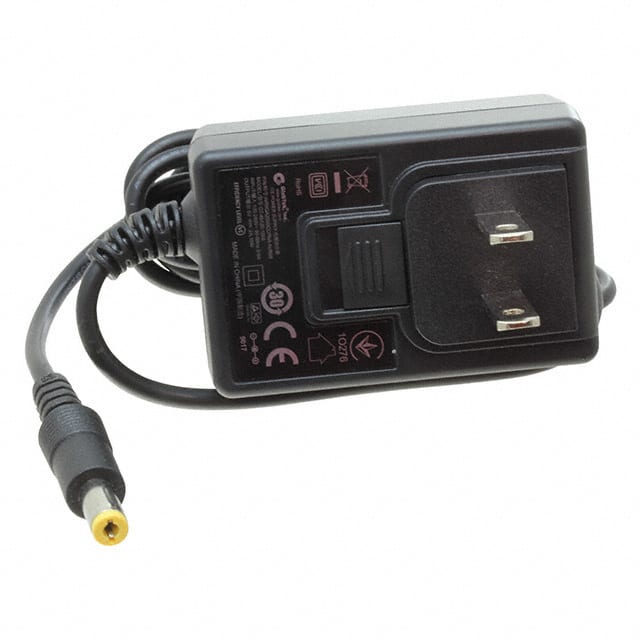

The GlobTek WR9QG2667CCPN(R6B) is an AC/DC wall mount adapter delivering 40W of power at 15V with a 2.66A output current. It features Level VI efficiency.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Tape & Reel | |
| Voltage | |
| Width |
The GlobTek, Inc. WR9QG2667CCPNNAR6B is an AC/DC wall mount adapter with a power rating of 40W and an output voltage of 15V. It meets Level VI efficiency standards, ensuring optimal energy usage.
This adapter is suitable for a variety of applications, including household appliances, ITE (commercial) equipment, and medical devices. It features a compact wall mount form factor (Class II) with dimensions of 43.5mm x 74.0mm x 35.3mm.
The input connector is a multi-blade type (sold separately), and the output connector is a standard barrel plug measuring 2.1mm I.D. x 5.5mm O.D. x 11.0mm with a positive center polarization. The cord length is 47.2 inches (1.20m). The operating temperature range is from 0°C to 40°C, and it has a low no-load power consumption of 75mW maximum.
Compliance is certified by various agencies including CB, CCC, CE, cETLus, EAC, FCC, PSE, RCM, UL, and VCCI, adhering to standards such as 60335-1, 60601-1-11, 60601-1-2, 60950-1, and 62368-1.
The output voltage is 15V.
The power rating is 40W.
It meets Level VI efficiency.
The operating temperature range is 0°C to 40°C.
The dimensions are 43.5mm x 74.0mm x 35.3mm.
It has a barrel plug output connector, 2.1mm I.D. x 5.5mm O.D. x 11.0mm.
It is RoHS3 Compliant.
