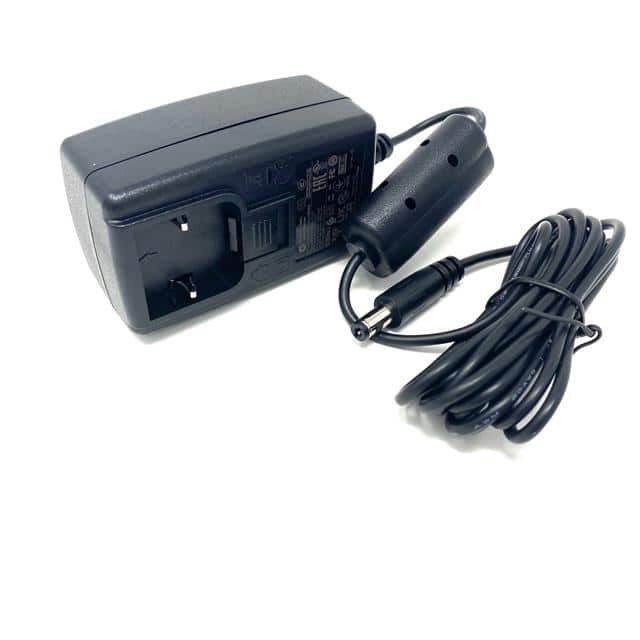

The GlobTek WR9QG1000CCP-N(R) is a regulated switchmode AC-DC power supply designed for ICT/ITE applications. It features a universal input rating of 100-240V AC at 50-60 Hz and provides a stable 15V DC output at 1A, delivering a total of 15W of power. This wall-mount adapter meets Level V efficiency requirements.
The unit has a compact form factor with dimensions of 74.0mm x 43.5mm x 35.3mm. It utilizes a standard barrel plug output connector (5.5mm x 2.1mm, positive center) and requires an interchangeable input cord, which is sold separately. The adapter is designed for wall mounting and is classified as Class II.
Key specifications include a 15W power rating, 15V output voltage, and 1A output current. The operating temperature range is from 0°C to 40°C. The WR9QG1000CCP-N(R) has received numerous agency approvals, including CB, CCC, CE, cULus, EAC, FCC, and PSE, indicating its suitability for international use. It is also RoHS3 compliant.
The WR9QG1000CCP-N(R) provides a 15.0V output at 1.0A.
This adapter has a power rating of 15W.
The adapter accepts an input voltage range of 100-240V AC.
The operating temperature range is 0°C to 40°C.
It uses a barrel plug with a 2.1mm inner diameter, 5.5mm outer diameter, and 11.0mm length, with positive center polarization.
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
