| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

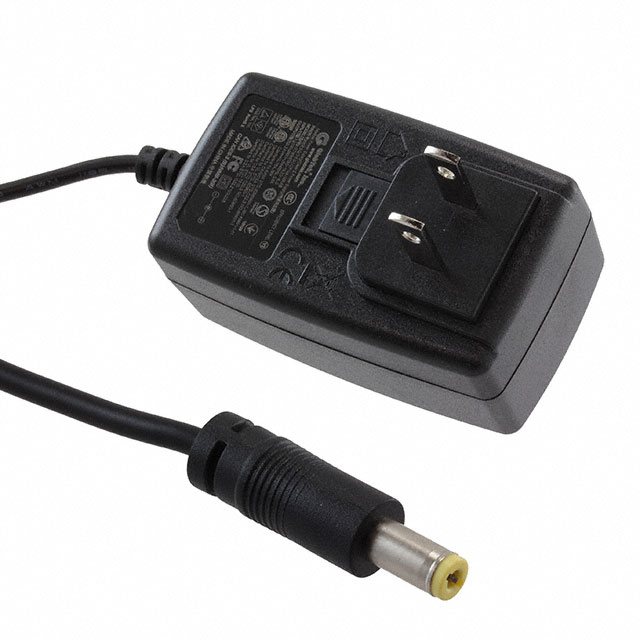

The GlobTek WR9QE500CCPNAIMR6B is a versatile AC/DC wall mount adapter designed for various applications including household appliances, commercial ITE equipment, and medical devices. It delivers a stable 12V output with a maximum current of 0.5A, providing a total power of 6W.
This adapter meets the USA DOE Level VI and Eco-design Directive 2009/125/EC efficiency standards, ensuring energy savings. It operates within a wide input voltage range of 100-240 VAC at 50-60 Hz. The unit features a compact wall-plug-in form factor (Class II) with dimensions of 43.5mm x 74.0mm x 36.8mm and a cord length of 1.20m.
Key specifications include a positive center polarization for the output connector, which is a standard barrel plug (2.1mm I.D. x 5.5mm O.D. x 11.0mm). The adapter is approved by multiple agencies including CE, cETLus, FCC, and UL, among others. It operates reliably within an ambient temperature range of -20°C to 50°C.
The WR9QE500CCPNAIMR6B adapter provides an output voltage of 12V at a maximum current of 0.5A.
The power rating for the WR9QE500CCPNAIMR6B adapter is 6W.
The WR9QE500CCPNAIMR6B adapter meets the Level VI efficiency standard.
The operating temperature range for the WR9QE500CCPNAIMR6B adapter is -20°C to 50°C.
The WR9QE500CCPNAIMR6B uses a barrel plug output connector with dimensions 2.1mm I.D. x 5.5mm O.D. x 11.0mm and positive center polarization.
This adapter is suitable for Household Appliances, ITE (Commercial), and Medical applications.
