| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

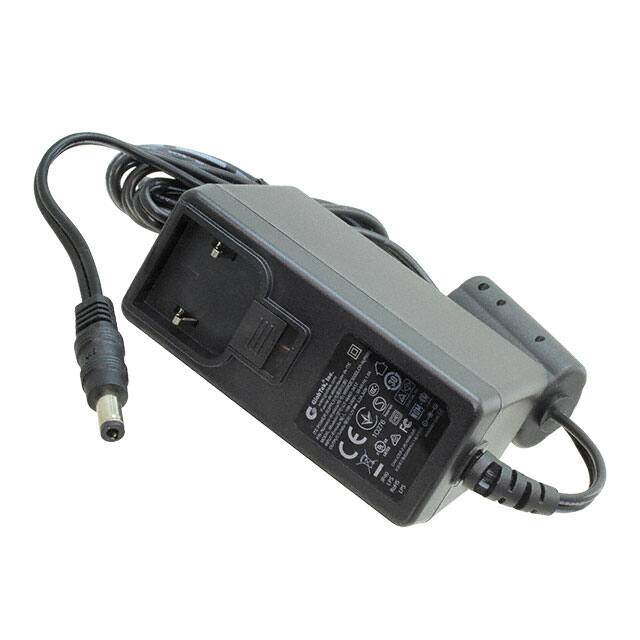

This GlobTek, Inc. WR9QE3000LCP-N(R6B) is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 12V output with a maximum current of 3A, providing a total power of 36W. The adapter meets Level VI efficiency standards, ensuring energy savings and reduced heat generation. It operates within a temperature range of 0°C to 40°C.
The unit features a compact form factor with dimensions of 90.0mm x 38.0mm x 59.4mm. It utilizes a Multi-Blade input connector (sold separately) and a standard barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 11.0mm) with a positive center polarization. The cord length is 1.23m (48.4 inches). The adapter is compliant with various international standards including CB, CE, cULus, EAC, LPS, NOM, PSE, RCM, S-Mark, UKRSepro, and VCCI, and adheres to the 60950-1 safety standard.
The WR9QE3000LCP-N(R6B) provides a 12V output voltage and a 3A output current.
The adapter has a power rating of 36W.
The WR9QE3000LCP-N(R6B) meets Level VI efficiency standards.
The operating temperature range for the WR9QE3000LCP-N(R6B) is 0°C to 40°C.
The dimensions are 90.0mm in length, 38.0mm in width, and 59.4mm in height.
It uses a Barrel Plug with dimensions 2.5mm I.D. x 5.5mm O.D. x 11.0mm and positive center polarization.
It complies with standard 60950-1 and carries approvals from CB, CE, cULus, EAC, LPS, NOM, PSE, RCM, S-Mark, UKRSepro, and VCCI.
