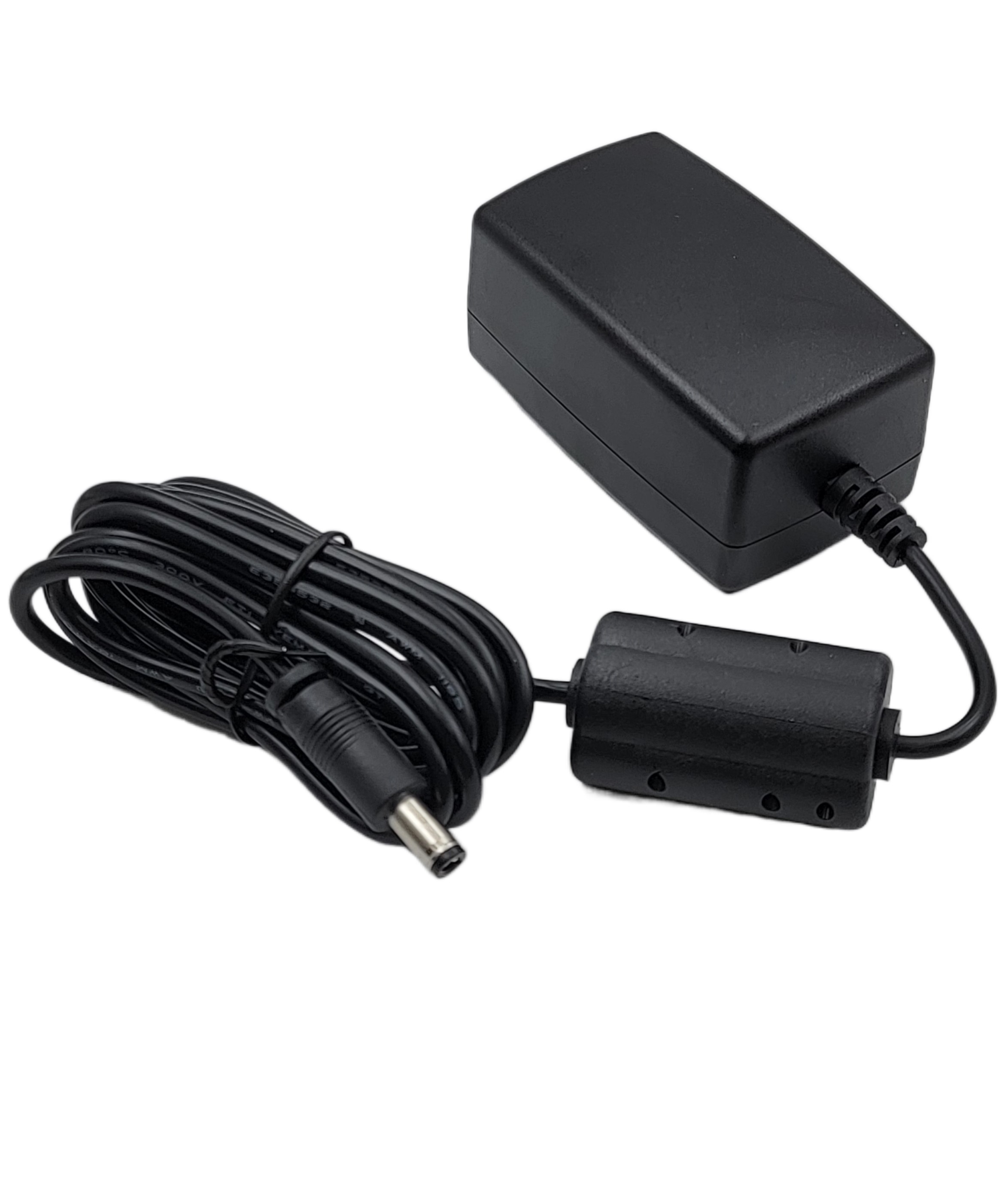

WR9QE1500LCPNNAR6B The GlobTek WR9QE1500LCPNNAR6B is an 18W AC-DC wall mount adapter providing a 12V output at 1.5A. It meets Level VI efficiency standards.
Mfr Part #:

WR9QE1500LCPNNAR6B

Mfr Name: GlobTek, Inc.
GlobTek, Inc.
The GlobTek WR9QE1500LCPNNAR6B is an 18W AC-DC wall mount adapter providing a 12V output at 1.5A. It meets Level VI efficiency standards.
Stock on Request

WR9QE1500LCPNNAR6B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Height
Input Connector
Input Frequency
Input Type
Input Voltage
Length
No Load Power Consumption
Operating Temperature
Output Connector
Polarization
Power (Watts)
Region Utilized
Standard Number
Voltage
Width
View Similar Products (0)

WR9QE1500LCPNNAR6B Description

Short technical summary and product information.

The GlobTek WR9QE1500LCPNNAR6B is a regulated switchmode AC-DC power supply designed for ITE (Commercial) applications. This wall-mount adapter operates with an input rating of 100-240V~ at 50-60 Hz, delivering a stable 12V output at 1.5A, for a total of 18W of power.



It features Level VI efficiency, ensuring reduced energy consumption, and has a low no-load power consumption of 75mW maximum. The operating temperature range is from 0°C to 40°C. The adapter has a compact form factor with dimensions of 74.0mm x 43.5mm x 34.0mm.



The output connector is a standard barrel plug measuring 5.5mm outside diameter and 2.5mm inside diameter, with a length of 11.0mm. The cord length is 1.83 meters (72 inches), and it utilizes a positive center pin polarization. The input connector requires interchangeable blades, sold separately, supporting international region utilization.



This power supply is compliant with numerous safety and regulatory standards, including CB 62368-1, cULus, CE, FCC, and PSE, among others. It is suitable for various commercial and information technology equipment applications requiring a reliable and efficient power source.

WR9QE1500LCPNNAR6B Quick Information

Product Type: AC DC Desktop, Wall Adapters
Canonical Name: GlobTek, Inc. WR9QE1500LCPNNAR6B AC-DC Power Supply
Subcategory: Wall Mount Adapter

WR9QE1500LCPNNAR6B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

WR9QE1500LCPNNAR6B Features

  • 18W output power at 12V and 1.5A.
  • Universal 100-240V AC input rating.
  • Meets Level VI energy efficiency standards.
  • Compact wall-mount Class II form factor.
  • Standard 5.5mm x 2.5mm barrel output connector.

WR9QE1500LCPNNAR6B Applications

  • Suitable for ITE and commercial equipment.
  • Ideal for international power applications.
  • Used in devices requiring 12V DC power.
  • Designed for regulated power delivery.

WR9QE1500LCPNNAR6B FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage and current of the WR9QE1500LCPNNAR6B?

The WR9QE1500LCPNNAR6B provides an output voltage of 12.0V at 1.5A.

What is the power rating of the WR9QE1500LCPNNAR6B adapter?

This adapter has a power rating of 18W.

What is the input voltage range for the WR9QE1500LCPNNAR6B?

The adapter accepts an input voltage range of 100-240 VAC.

What efficiency level does the WR9QE1500LCPNNAR6B meet?

The power supply meets Level VI efficiency standards.

What are the operating temperature limits for this power adapter?

The WR9QE1500LCPNNAR6B can operate within a temperature range of 0°C to 40°C.

What type of output connector does the WR9QE1500LCPNNAR6B use?

It features a barrel plug output connector with a 2.5mm inner diameter and 5.5mm outer diameter, and a length of 11.0mm.

Is the WR9QE1500LCPNNAR6B RoHS compliant?

The WR9QE1500LCPNNAR6B is stated as RoHS3 Compliant.
